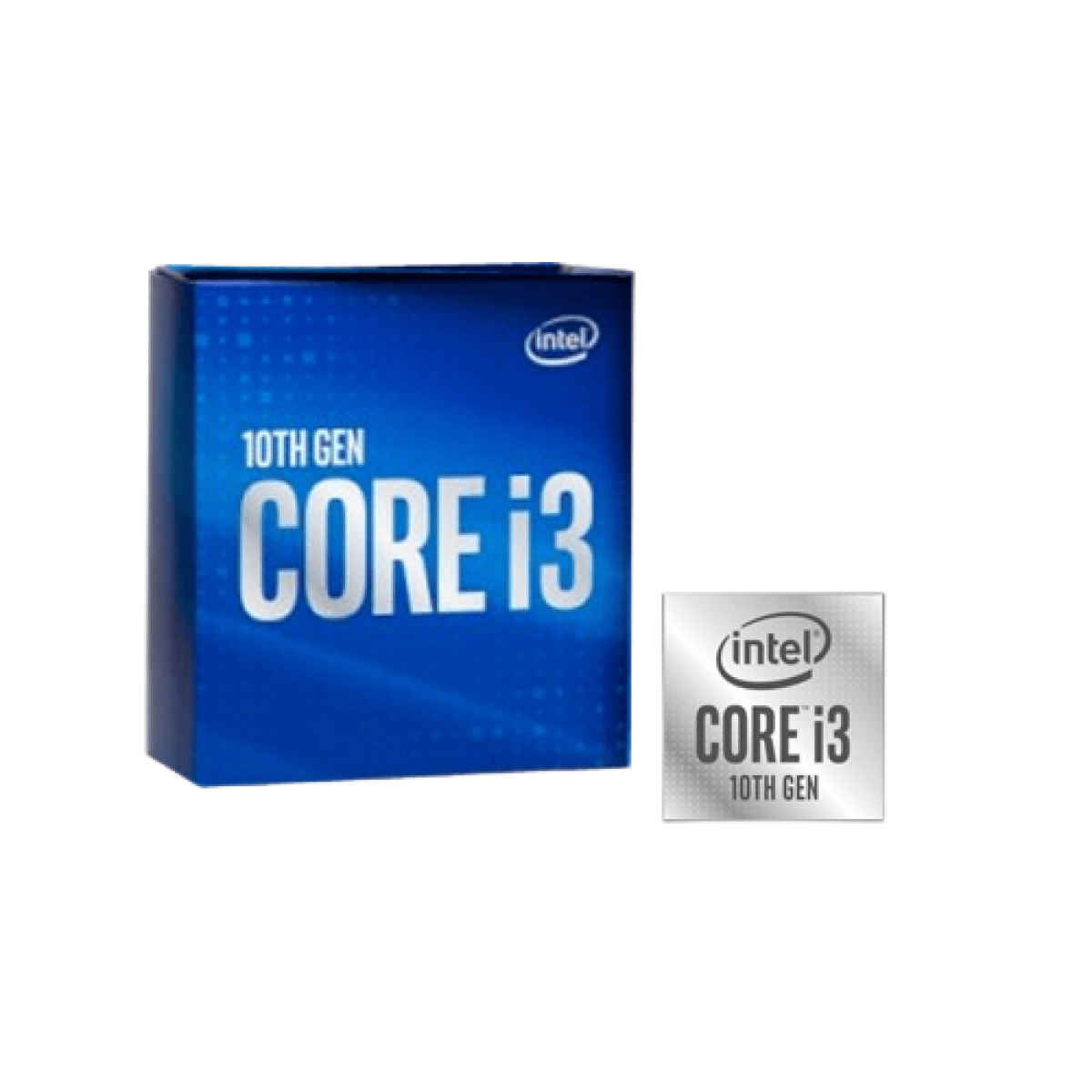

INTEL CORE I3 -10100 PROCESSOR

10th Generation Intel® Core™ i3 Processors
Vertical Segment : Desktop
Processor Number
i3-10100
Status
Launched
Launch Date
Q2’20
Lithography
14 nm
Use Conditions
PC/Client/Tablet
CPU Specifications
# of Cores 4
# of Threads 8
Processor Base Frequency
3.60 GHz
Max Turbo Frequency
4.30 GHz
Cache
6 MB Intel® Smart Cache
Bus Speed
8 GT/s
Intel® Turbo Boost Technology 2.0 Frequency‡
4.30 GHz
TDP
65 W
Supplemental Information
Embedded Options Available
No
Memory Specifications
Max Memory Size (dependent on memory type)
128 GB
Memory Types
DDR4-2666
Max # of Memory Channels
2
Max Memory Bandwidth
41.6 GB/s
ECC Memory Supported
No
Processor Graphics
Intel® UHD Graphics 630
Graphics Base Frequency
350 MHz
Graphics Max Dynamic Frequency
1.10 GHz
Graphics Video Max Memory
64 GB
4K Support
Yes, at 60Hz
Max Resolution (HDMI)
4096 x 2160@30Hz
Max Resolution (DP)
4096 x 2304@60Hz
Max Resolution (eDP – Integrated Flat Panel)
4096 x 2304@60Hz
Direct X Support 12
OpenGL Support
4.5
Intel® Quick Sync Video
Yes
Intel® InTru™ 3D Technology
Yes
Intel® Clear Video HD Technology
Yes
Intel® Clear Video Technology
Yes
# of Displays Supported 3
Device ID
0x9BC8
Expansion Options
Scalability
1S Only
PCI Express Revision 3.0
PCI Express Configurations
Up to 1×16, 2×8, 1×8+2×4
Max # of PCI Express Lanes 16
