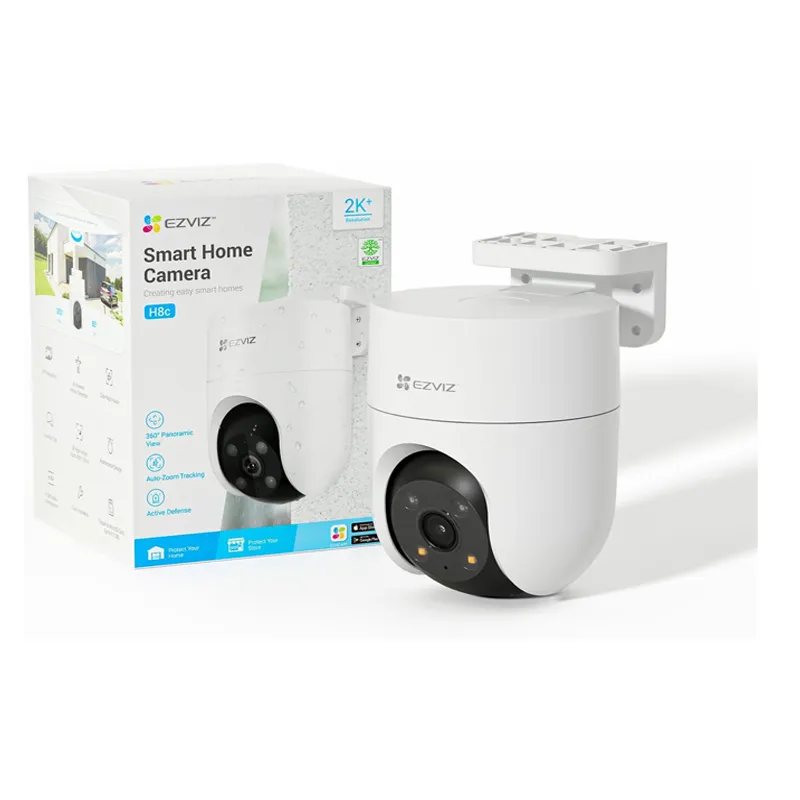

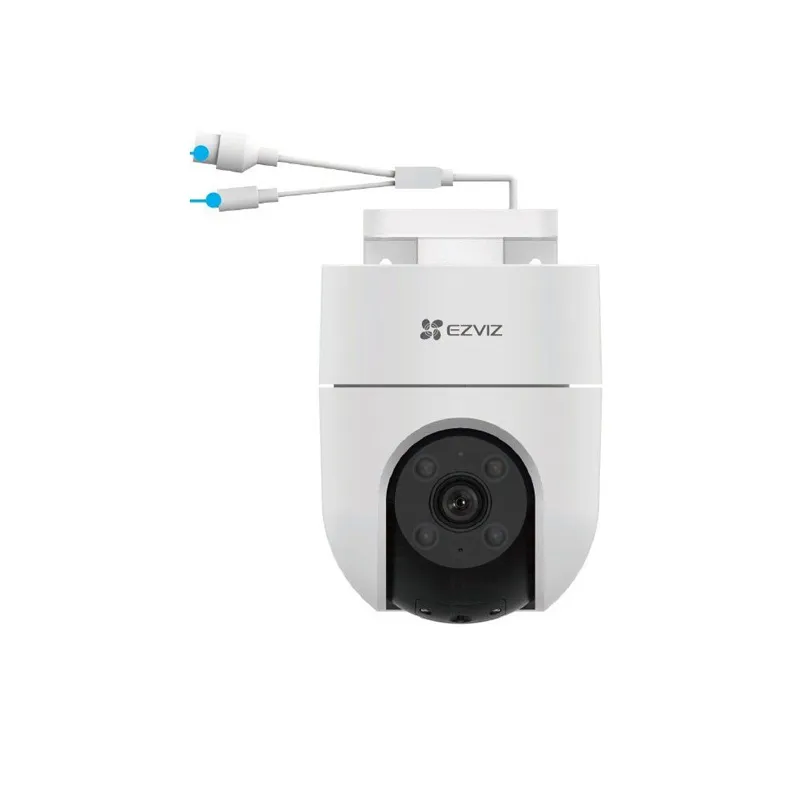

CS-H8C-4G 2K PT CAMERA

Specifications

Model CS-H8c-R200-1K3KFL4GA

Camera

Image Sensor 1/2.8″ Progressive Scan CMOS
Shutter Speed Self-adaptive shutter
Lens 4mm@ F1.6, viewing angle: 46° (Vertical), 86° (Horizontal), 102° (Diagonal) 6mm@ F1.6, viewing angle: 28° (Vertical), 52° (Horizontal), 62° (Diagonal)
PT Angle Pan: 350°, Tilt: 80°
Minimum Illumination 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)
Lens Mount M12
DNR 3D DNR
WDR Digital WDR
Black & White Night 30m / 98ft

Video & Audio

Max Resolution 2304 × 1296
Frame Rate Max:30fps; Self-Adaptive during network transmission
Video Compression H.265 / H.264
H.265 Type Main Profile
Video Bit Rate Ultra-HD; Hi-Def; Standard. Adaptive bit rate.
Audio Bit Rate Self-Adaptive
Max. Bitrate 3 Mbps

Network

Frequency Bands IN LTE-FDD：B1/B3/B5/B8 IN LTE-TDD：B34/B38/B39/B40/B41 EU LTE-FDD：B1/B3/B5/B7/B8/B20/B28 LA LTE-FDD：B2/B3/B4/B5/B7/B8/B28/B66
Wired Network RJ45 × 1 (10M / 100M Adaptive Ethernet Port)

Functions

Smart Alarm Human Motion Detection, Vehicle Detection
Auto Tracking Supports
Customized Alert Area Supports
Two-way Talk Supports
Preset Locations Supports
General Function Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark

Storage

Local Storage Supports microSD Card (Up to 512 GB)
Cloud Storage Supports EZVIZ CloudPlay storage (Subscription required)

General

Operating Conditions -30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing)
IP Grade Weatherproof Design
Power Supply DC 12V/1A
Dimensions 100 × 136 × 140mm (3.94 × 5.35 × 5.51 inch)
Packaging Dimensions 140 × 140 × 192mm (5.51 × 5.51 × 7.56 inch)
Weight Net Weight: 513.8 g (18.12 oz) With Package: 796.7 g (28.1 oz) For EU Standard Version

In the box

– H8c 4G Camera
– Drill Template
– Screw Kit
– Waterproof Kit
– Power Adapter
– Regulatory Information
– Quick Start Guide
