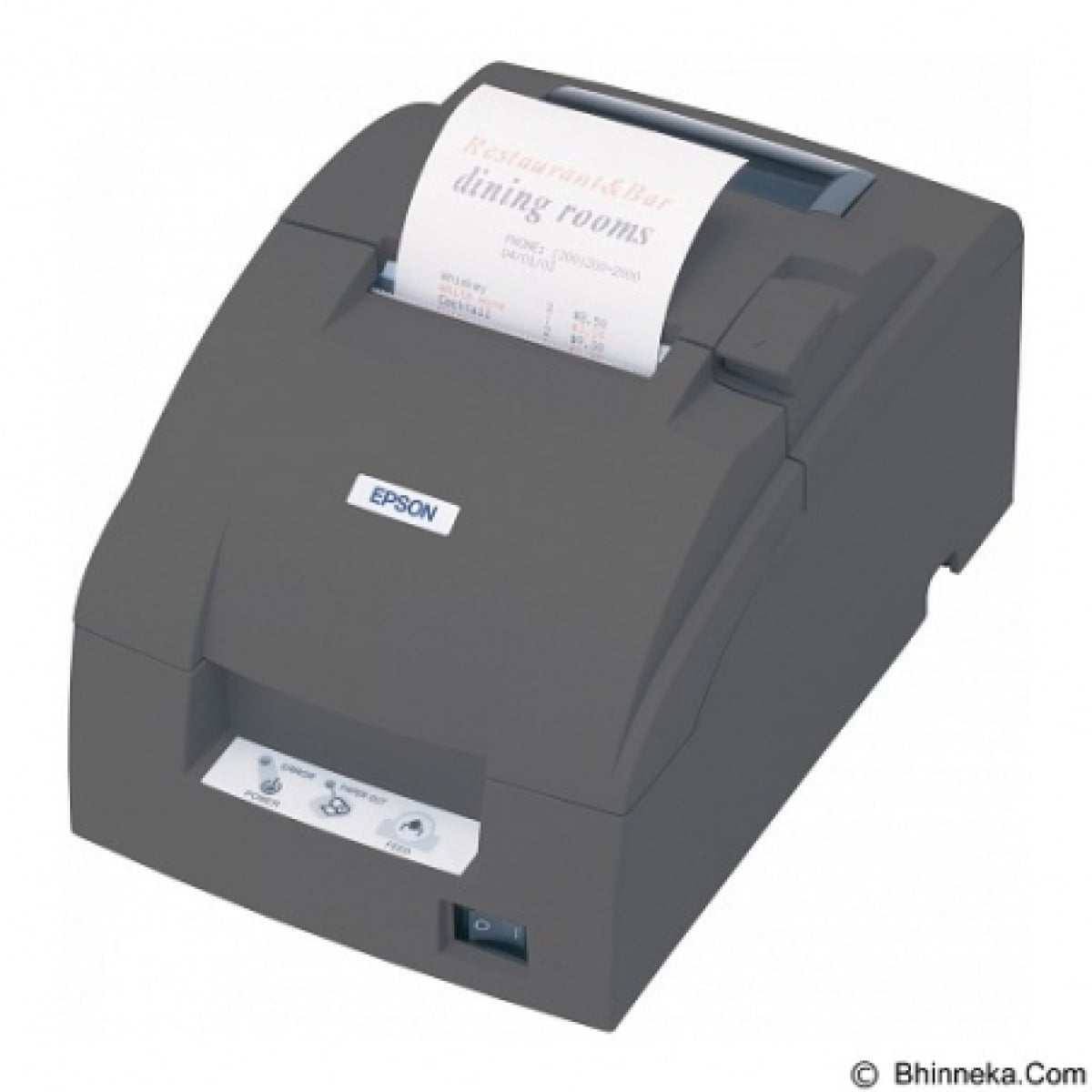

EPSON TM-U220D-675 POS PRINTER
SKU:
CPO092
The TM-U220 is a robust, high performance impact receipt printer which is exceptionally easy to use. Featuring drop-in paper load, selectable auto-cutter and clamshell covers for easy access and maintenance, the TM-U220 is very reliable and prints on plain paper in three widths.
Description
Print method : 9-pin serial impact dot matrix
Technology : Serial Impact Dot Matrix
Print Speed : 4.70 lps (40 columns, 16.00 cpi)
Column capacity receipt : Paper width 76 mm, 33 / 40
Character size : 1.2 mm (W) x 3.1 mm (H) / 1.6 mm (W) x 3.1 mm (H)
Character set : 95 Alphanumeric, 48 International, 128 x 12 Graphic
Characters per inch : 13.3 cpi / 16 cpi
Colour Printing : Two colours
Receipt
Copy capability receipt
one copies plus one original
Paper size roll paper
76.00 ± 0.50 (W) mm x dia 83.00 mm,
69.50 ± 0.50 (W) mm x dia 83.00 mm,
57.50 ± 0.50 (W) mm x dia 83.00 mm
Interfaces
RS-232, Drawer kick-out, USB 2.0 Type B, Bidirectional parallel
Power Supply
PS-180
Operating Voltage
24 V
Product dimensions
160‎ x 248 x 139 mm (Width x Depth x Height)
Product weight
2.3 kg
Colour
Epson Dark Grey / Epson Cool White
Installation
horizontally, vertically with wall hanging bracket
Interface connectors
D.K.D. function (2 drivers)
Noise Level
Operation: 64 dB (A)
Supported Humidity
Operation 10% – 90%, Storage 10% – 90%
Supported Temperature
Storage -10° C – 50° C
Reliability
18,000,000 MCBF (Lines), 180,000 MTBF (Hours)
Auto Cutter Life
800,000 Cuts
Printer Life
7,500,000 lines
EMC Standards
CE marking
Safety standards
TÃœV
Changeable interface
Yes
Sensors
Roll paper cover open sensor, Paper End Sensor
