MPG Z490 GAMING PLUS MOTHERBOARD

SKU: CMO182

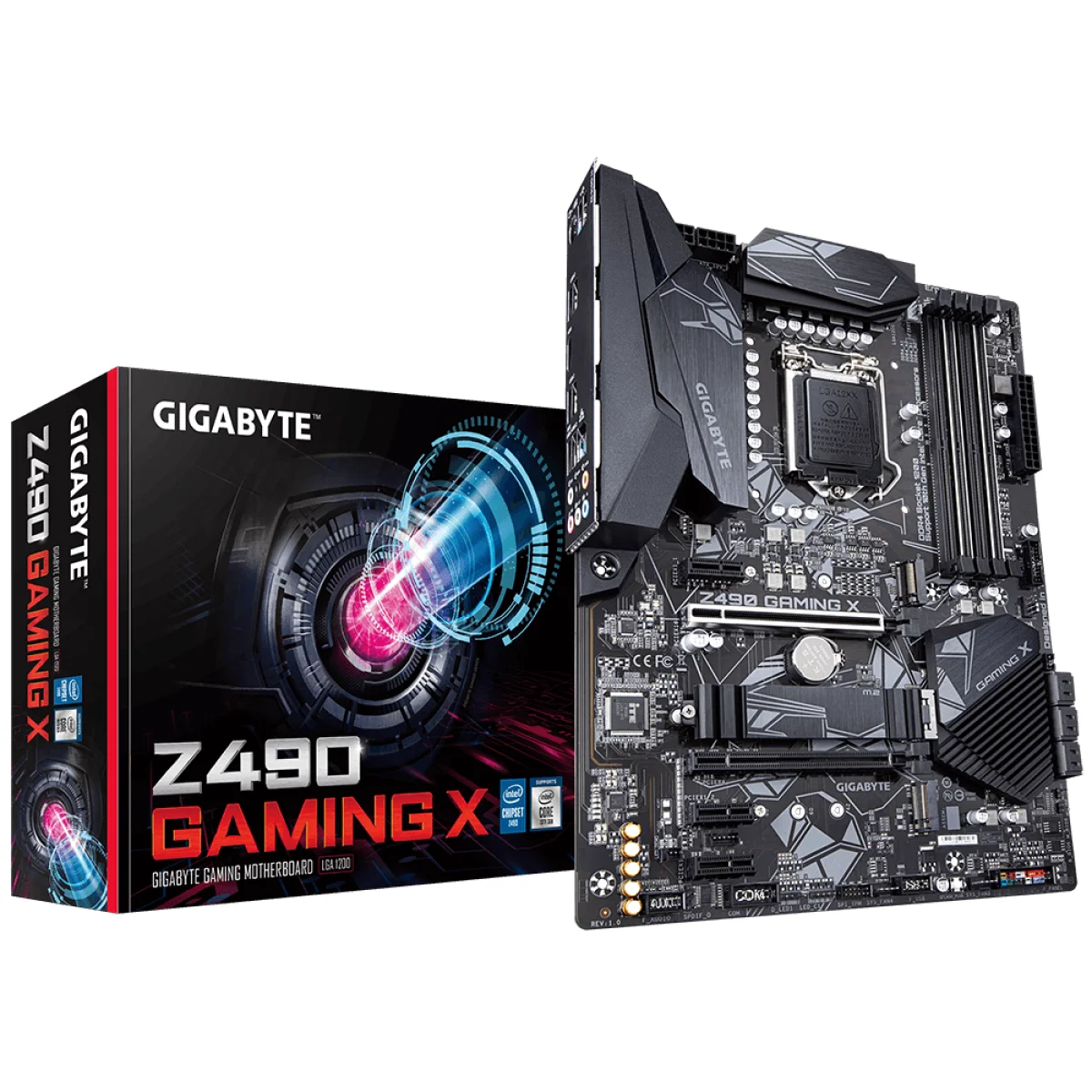

Z490 GAMING X (rev. 1.0)

Intel® Z490 GAMING Motherboard with Direct 11+1 Phases Power Design, 2-Way CrossFire™ Multi-Graphics, Intel® GbE with cFosSpeed, USB 3.2 Gen2 Type-A, Dual M.2 with 1 Thermal Guard, Smart Fan 5, Dual Armor with Ultra Durable™ Technology, RGB FUSION 2.0, Q-FLASH PLUS



  • Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors*
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Intel® Optane™ Memory Ready
  • Direct 11+1 Phases Digital VRM Solution with DrMOS
  • Enlarged VRM Heatsink with 5W/mK Thermal Conductive Pad
  • Intel® GbE LAN with cFosSpeed Internet Accelerator Software
  • Multi-Way Graphics Support with Dual Armor and Ultra Durable™ Design
  • ALC1200 Multi-Channel Audio with High Quality Audio Capacitors and Audio Noise Guard
  • Dual Ultra-Fast M.2 with PCIe Gen3 X4 (1 with Thermal Guard) & SATA Interface
  • Intel® Native USB 3.2 Gen2 Type-A with Speed Up To 10Gbps
  • RGB FUSION 2.0 Support Addressable LED & RGB LED Strips

රු53,218.00

20 People watching this product now!
WARRANTY :

Out of stock

Description

PROCESSOR
Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket 1 2

CHIPSET
Intel® Z490 Chipset

MEMORY
4 x DDR4 memory slots, support up to 128GB 1
Supports 1R 2133/2666/2933 MHz 1
1DPC 1R Max speed up to 5000+ MHz
1DPC 2R Max speed up to 4500+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

EXPANSION SLOT
1x PCIe 3.0 x16 slot (from CPU)
1x PCIe 3.0 x16 slot (from PCH, supports x4 mode)
3x PCIe x1 slots (from PCH)
ONBOARD GRAPHICS
1x HDMI port, supports a maximum resolution of 4096×2160 @ 30Hz
1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz
MULTI-GPU
Supports 2-Way AMD® CrossFire™ Technology
STORAGE
Intel® Z490 Chipset
6x SATA 6Gb/s ports 1
2x M.2 slots (Key M)
M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices 1
M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices 2
Intel® Optane™ Memory Ready 3

RAID
Intel® Z490 Chipset
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 PCIe storage devices
USB
Intel® Z490 Chipset
2x USB 3.2 Gen 2 10Gbps ports (1 Type-A port and 1 Type-C port on the back panel)
7x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 4 ports through the internal USB connectors, 1 Type-C internal connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AUDIO
Realtek® ALC1200-VD1 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
LAN
1x Realtek® RTL8125B-CG 2.5G LAN Controller
