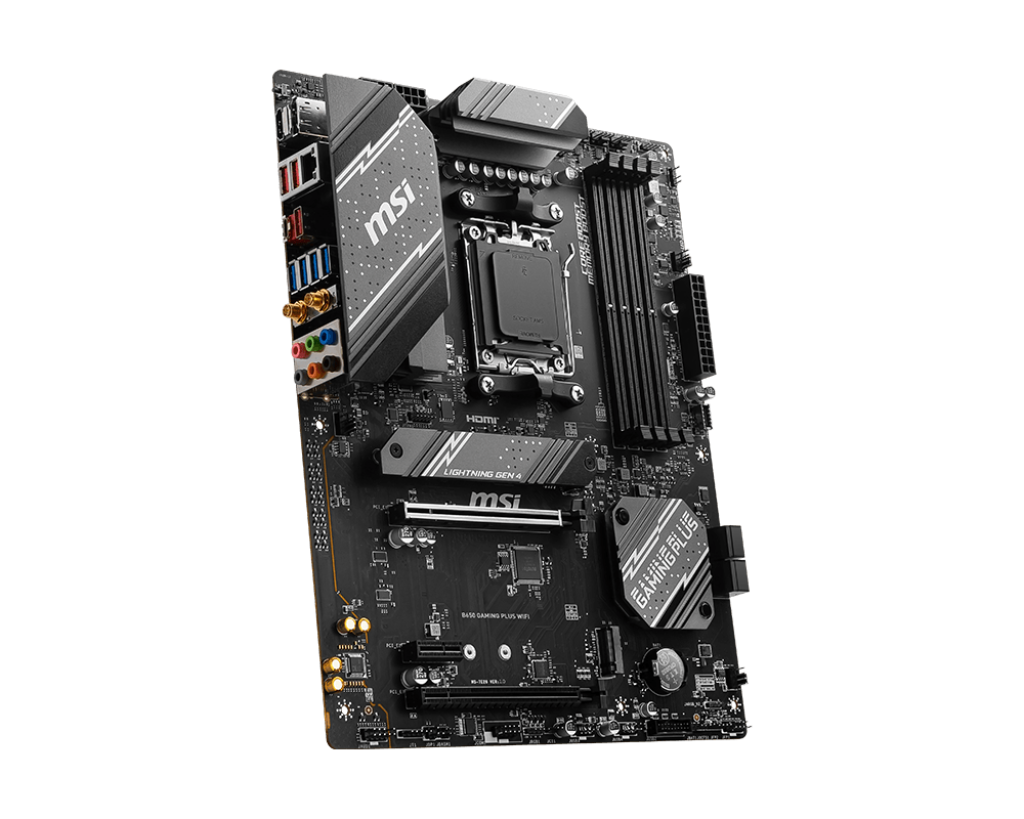

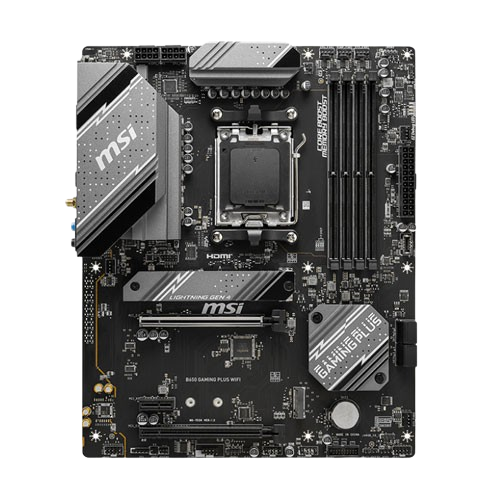

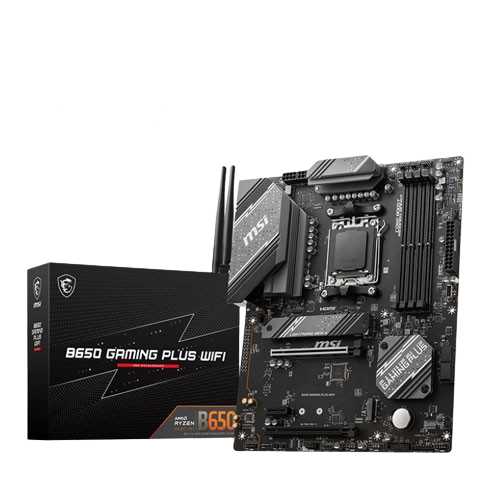

MSI B650 Gaming Plus (Wi-Fi) DDR5 Motherboard

CPU Support:
• AMD Ryzen™ 7000 Series (Socket AM5)
• AMD EXPO & DDR5 support

Memory:
• 4x DDR5 DIMM, up to 192GB
• Supports up to DDR5-7200+ (OC)
• Dual-Channel, non-ECC, unbuffered

Graphics Output (only with supported CPUs):
• 1x HDMI 2.1 (4K@60Hz)
• 1x DisplayPort 1.4 (4K@60Hz)

Expansion Slots:
• 2x PCIe x16 (1x PCIe 4.0, 1x PCIe 4.0 x4)
• 1x PCIe x1 (PCIe 3.0)
• AMD MULTI-GPU support

Storage:
• 2x M.2 PCIe 4.0 slots (up to 22110)
• 4x SATA 6Gb/s
• RAID 0/1 supported for SATA & NVMe

Networking:
• 2.5G LAN (Realtek® 8125BG)
• Wi-Fi 6E & Bluetooth 5.3 (pre-installed)

USB Ports:
• Front: 4x USB 2.0, 2x USB 3.2 Gen1 Type-A, 1x USB 3.2 Gen2 Type-C

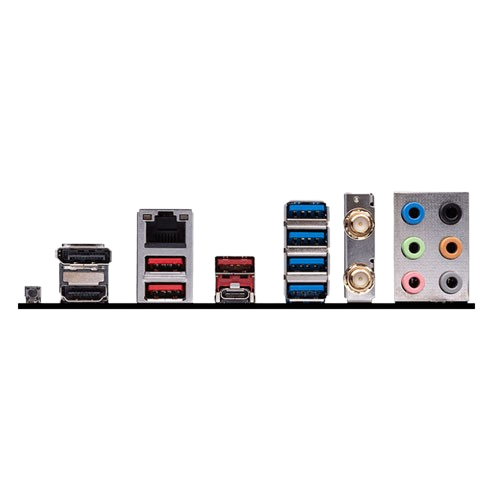

• Rear: 4x USB 3.2 Gen1 Type-A, 3x USB 3.2 Gen2 Type-A, 1x USB 3.2 Gen2x2 Type-C

Audio:
• Realtek® ALC897 Codec, 7.1 Channel HD Audio

Cooling & RGB:
• 1x CPU Fan, 1x Pump Fan, 4x System Fans
• 2x ARGB + 2x RGB headers
• 4x EZ Debug LEDs

OS Compatibility:
• Windows 10/11 64-bit
