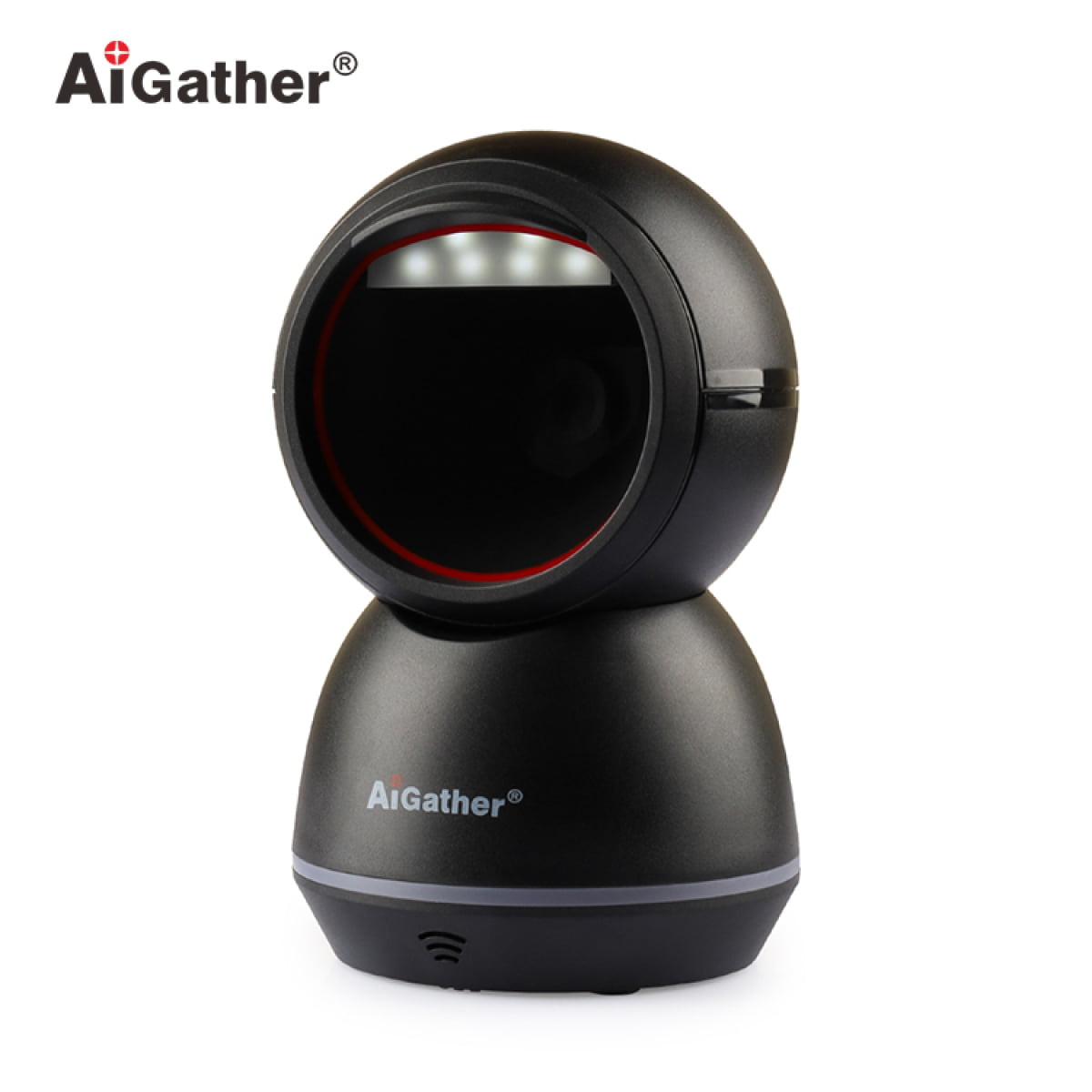

BARCODE SCANNER- AIGATHER A-700 DESKTOP BARCODE SCANNER
DESKTOP BARCODE SCANNER AIGATHER A-700
Features – Stylish and compact, attractive; – Automatic dormant mode, energy-saving; – 300,000 pixels global shutter, with great speed and precision; – Minimum resolution: 4 mils; – Bright White LED for illuminating scanning surfaces; – Read all mainstream 1D&2D bar codes; – Strong body with scratch-resistant material; – Quickly read various LCD and OLED mobile phone screen codes and printed product codes.
රු29,500.00
17
People watching this product now!
In stock
or 3 X රු 9,833.33 with
Description
Features
A-700 Specification
Performance Parameter
Material
ABS+PC
Light Source
LED White Light
Image sensor
640*480 pixels Global Shutter
Resolution(maximum)
4mil
Print contrast ratio(minimum)
≥15%
CPU
600M
Imaging Speed
120 fps
Motion tolerance
1.6M/sec
Reading Angle
Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60°
Decoding Capability
1D
All standard 1D codes, including GS1 DataBar™ linear code can be automatically distinguished and decoded.
2D
Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code
Stack code
GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417
Reading Indicators
LED light & Buzzer(adjustable tone and volume)
Typical Depth of Field
Precision
Barcode
Depth of Field
(The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.)
5mil
CODE128
0mm~70mm
5mil
EAN-13
0mm~70mm
13.34mil
EAN-13
0mm~240mm
5mil
PDF417
0mm~60mm
10mil
PDF417
0mm~170mm
15mil
PDF417
0mm~270mm
20mil
DM
0mm~80mm
Physical Characteristics
Color
Black
Dimensions(L*W*H)
96*106*157mm
Weight
278g
Cable
1.8m
Electrical Parameter
Current
Working current(Standard):
Standby current(Standard):
Input Voltage
5 VDC (+/- 10%)/500mA
Environmental Parameter
ESD protection(Air discharge)
8 kV
Drop resistance
Withstands repeated drops from 1.2m/4.0 ft onto a concrete surface.
Particulate and water sealing
IP52
Temperature
Operation: -20 to 40 °C
Storage/Transport: -40 to 70 °C
Humidity(non-condensing)
5 – 95%
Ambient light
0 -100,000 lux
Interfaces
RS-232; USB HID; USB COM; HID POS available as per customer’s needs
Warranty
1 Year
