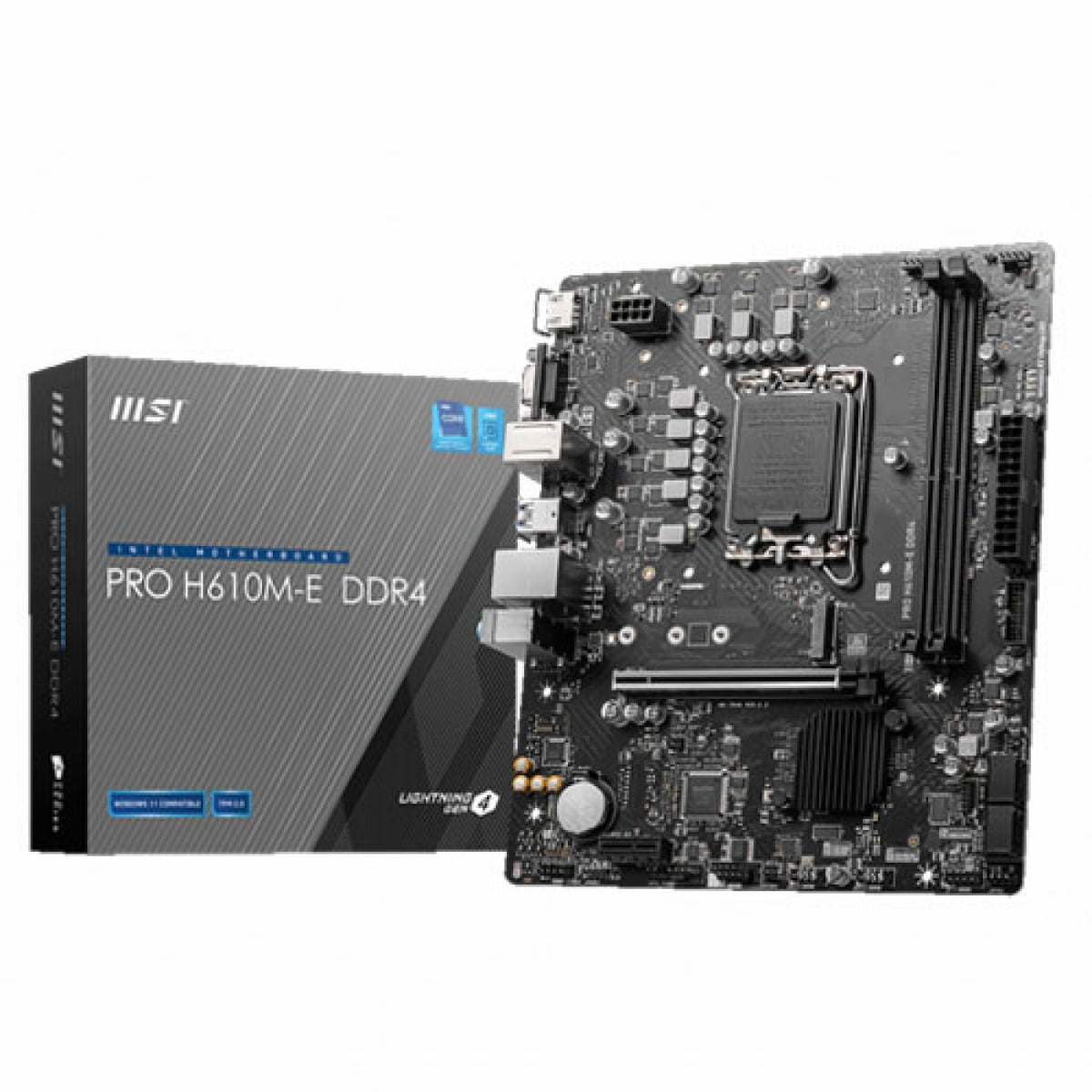

MSI H610M MOTHERBOARD

PROCESSOR
– Supports 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors 1
– Processor socket LGA1700

CHIPSET
Intel® H610 Chipset

MEMORY
2x DDR4 memory slots, support up to 64GB

EXPANSION SLOT
– 1x PCIe x16 slot (From CPU)
– 1x PCIe x1 slot (From H610 chipset)

ONBOARD GRAPHICS
– 1x HDMI™ 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz
– 1x VGA port, supporting a maximum resolution of 2048×1536 50Hz

SATA PORTS
4x SATA 6Gb/s ports (From H610 chipset)

M.2 SSD SLOT
1x M.2 slot (Key M) (from CPU)

AUDIO
– Realtek ALC897 Codec
– 7.1-Channel High Definition Audio

LAN
1x Realtek® RTL8111H 1Gbps LAN controller

POWER CONNECTORS
– 1x 24-pin ATX main power connector
– 1x 8-pin +12V power connector

INTERNAL USB CONNECTORS
– 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset)
– 2x USB 2.0 Type-A connectors (From Hub-GL850G)

FAN CONNECTORS
– 1x 4-pin CPU fan connector
– 2x 4-pin system fan connectors

SYSTEM CONNECTORS
– 1x Front panel audio connector
– 2x System panel connectors
– 1x Chassis Intrusion connector
– 1x TPM module connector
– 1x Serial port connector

JUMPERS
1x Clear CMOS jumper

LED FEATURES
– 1x 4-pin RGB LED connector
– 4x EZ Debug LED

BACK PANEL PORTS
– HDMI™
– VGA
– Keyboard / Mouse
– USB 3.2 Gen 1 5Gbps Type-A
– LAN port
– Audio connector
– USB 2.0
