MSI PRO B760M P DDR5 MOTHERBOARD

Product description MSI B450M-A Pro Max Motherboard

AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Turbo M.2, USB 3.2 Gen1

– Supports 1st, 2nd and 3rd Gen AMD® Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD® Ryzen™with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Desktop Processors for Socket AM4
– Supports DDR4 Memory, up to 4133 (OC) MHz
– Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
– Audio Boost: Reward your ears with studio grade sound quality.
– X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
– Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

Stronger Than Steel:
– Keyboard & Mouse
– DVI-D
– HDMI
– USB 3.2 Gen1
– USB 3.2 Gen1
– USB 2.0 & LAN Port
– HD Audio Connectors
– DDR4 Boost
– Optimized traces and isolated memory
– Turbo M.2
– Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
– Heavy Plated Heatsinks
– Leading heatsinks design, for maximum cooling
– Audio Boost
– Reward your ears with studio grade sound quality

Diy Friendly:
– MSI motherboards feature tons of convenient and smart design, such as convenient pin-header keep out zone, friendly SATA & USB location and so on, so DIY users can pick and choose any gaming rig they want.

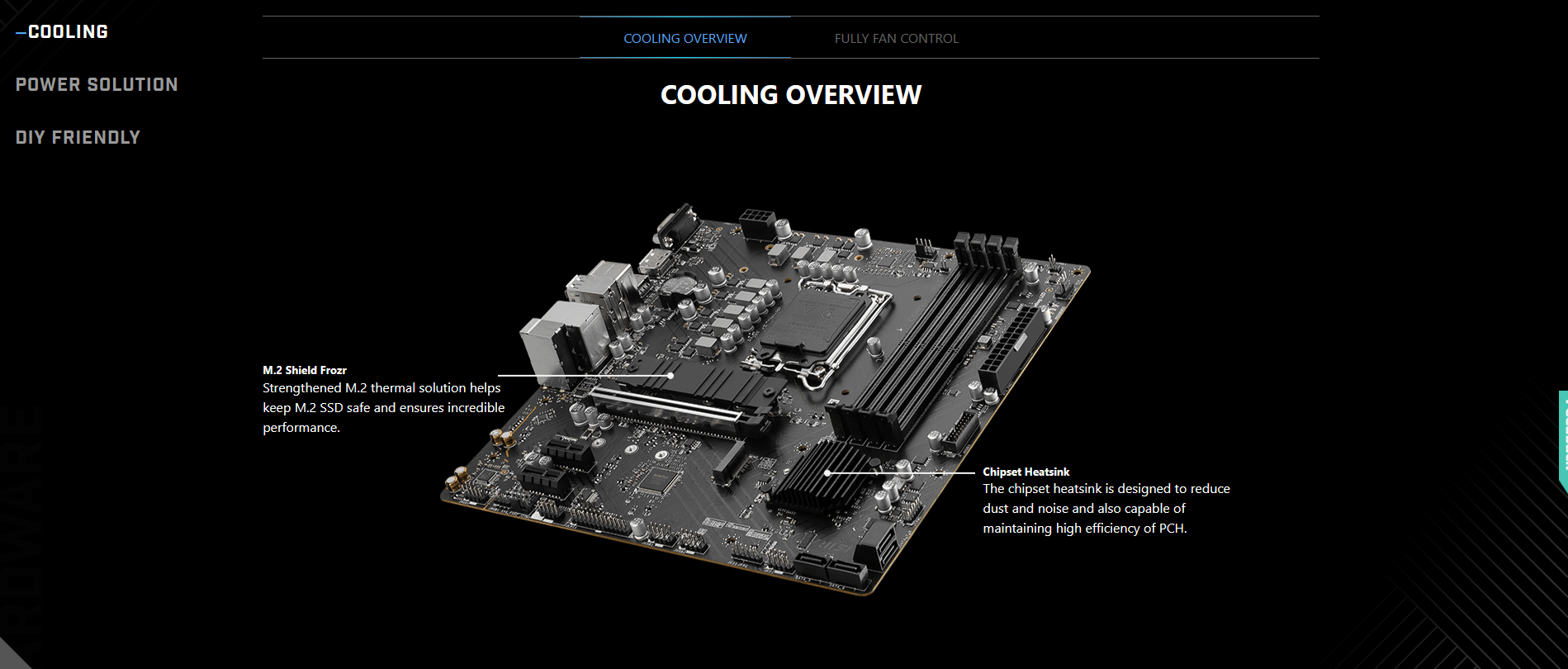

Cooling:

Stay Cool For Reliable System:
– Cooling your PC is essential for reliable performance. MSI motherboards feature excellent power design with solid and heavy heatsink. We´ve made sure to include enough fan headers with full control to allow you to cool your system any way you want.

Fully Controllable In Bios And Software:
– MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

Compatibility:

Maximum Compatibility:
– Every MSI motherboards are certified by strict mechanic that feature convenient pin-header keep out zone, friendly SATA & USB location for compatibility with the widest range of components and devices, so DIY user can pick and choose the components they want. More than that, we offer a dedicated Qualified Vendor List (QVL) for the most critical part – memory. Combining with MSI DDR4 Boost technology, we provide the maximum compatibility even over clocking, so you confirm and choose any gaming rig as you want.

Ryzen Processor Support:
– MSI X570 motherboards support latest generation RYZEN processors from AMD with updated features and capabilities. Ascend to new heights with a platform built for both creators and gamers.

Memory Compatibility & Testing:
– Get stability out of MSI’s extensive and aggressive memory testing and optimization. Working alongside partnered brands like Corsair, Crucial, Kingston, G.SKILL, and many more, MSI has worked hard to get the most out as many memory configurations as possible

Bios And Software:

Apps To Greatly Improve Efficiency:
– With years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. Use these tools to get the most out of your motherboard and achieve victory when gaming. Moreover, we made sure our BIOS contains all the latest options and is easy to use for everyone. The extensive features let you fine-tune your system to deliver reliable maximum performance.

X-Boost Your Storage:
– This unique and exclusive software allows you to boost the performance of any storage or USB device connected to your system. Simply use X-BOOST’s Easy or Advanced mode to tune your system speed increased, higher system responsiveness and faster loading of data.

Take Command Of Your System:
– MSI’s Command Center software is the perfect tool to get the most out of your motherboard. With an intuitive interface, Command Center allows you to tune settings to increase system stability, maximize performance and optimize your system’s cooling features.

Enhanced Performance:
– MSI motherboards featured all the latest solution for enthusiast gamers and prosumers. CPU and memory enhancement and fast storage and USB transfer speed are ready to be on the battlefield.

CPU:

High Power Efficiency:
– Power on your RYZEN processor with optimized circuit layouts and high quality power delivery parts for an incredibly stable operation.

Core Boost:
– Core Boost is the latest development in the MSI motherboard CPU power transmission system. The high-quality power delivery component area retained on the optimized circuit design produces an efficient power system that delivers accurate current to the CPU.

Memory:

Easy Overclocking With Xmp Profile:
– The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC lab. It is easy to enable with auto power settings to get the best memory speed and stability.

Easy Overclocking With A-Xmp Profile:
– Choose from a preset A-XMP profile in CLICK BIOS 5 and automatically overclock compatible DDR memory. The MSI OC lab has tested and certified these settings for speed and stability.

Storage:

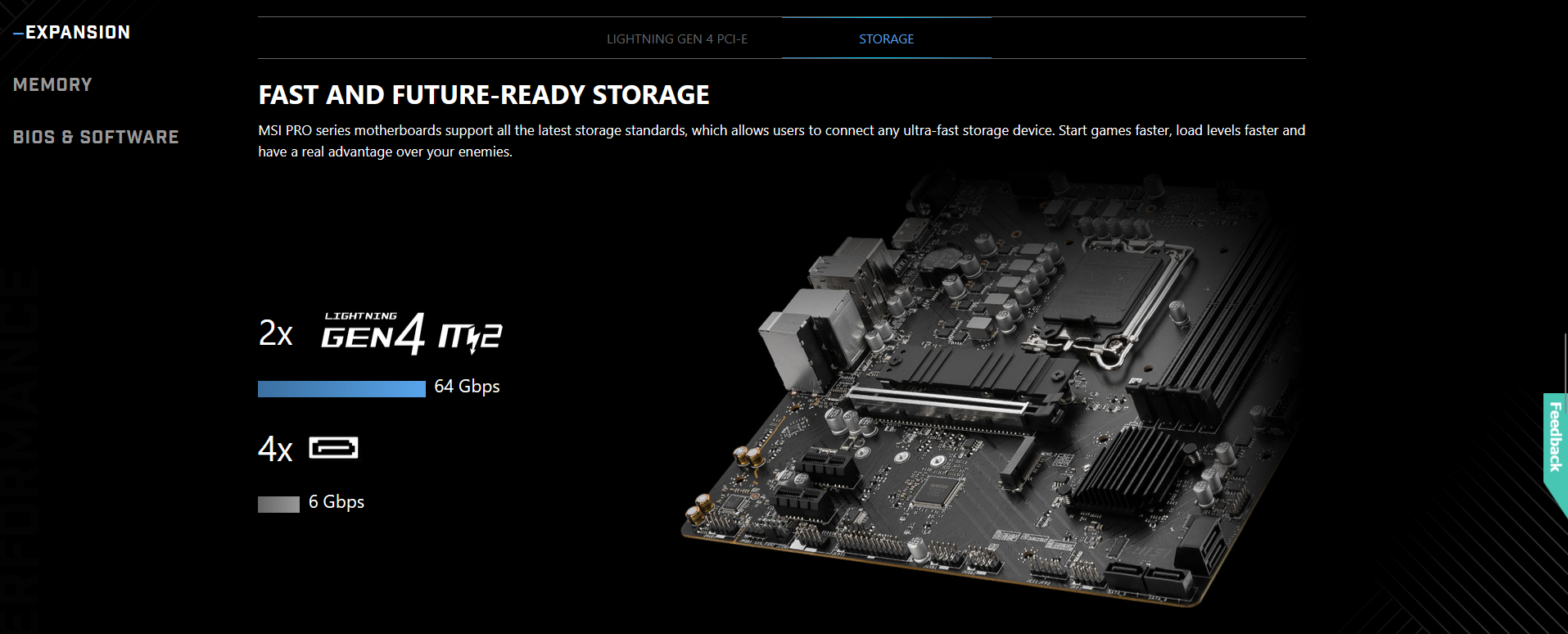

Fast And Future-Ready Storage:
– MSI motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

Turbo M.2:
– Enjoy a blazing fast system boot up and insanely quick loading of applications and games with MSI motherboards. Delivering speeds up to 32Gb/s per device using Gen3 x4, Turbo M.2 is over 5 times faster than a regular SATA III connection!

Amd Storemi:
– All MSI X470 & B450 motherboards are shipped with STOREMI, the new AMD SSD technology to improve storage performance. This tool helps create a virtual SSD by blending capacity storage, treats flash as primary storage and optimizes data access with monitoring continuously. All these functions can enhance read/write speed for active data and provide fast boot times and application startup.

Specifications:

– Socket: AM4
– Cpu (Max Support): RYZEN
– Chipset: AMD® B450 Chipset
– Memory Channel: Dual
– Dimm Slots: 2
– Max Memory (Gb): 32
– Pci-E X16: 1
– Pci-E Gen: Gen3
– Pci-E X1: 1
– Sataiii: 4
– M.2 Slot: 1
– Tpm (Header): 1
– Lan: 1x Realtek® 8111H
– Usb 3.2 Ports (Front): 2(Gen1, Type A)
– Usb 3.2 Ports (Rear): 4(Gen1, Type A)
– Usb 2.0 Ports (Front): 4
– Usb 2.0 Ports (Rear): 2
– Serial Ports(Front): 1
– Audio Ports (Rear): Realtek® ALC892 Codec
– Dvi-D: 1
– Hdmi: 1
– Directx: 12
– Form Factor: m-ATX
– Operating System: Support for Windows® 10 64-bit Support for Windows® 7 64-bit To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.

Processor:
– Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4

Chipset:
– AMD® B450 Chipset

Slots:
– 1 x PCIe 3.0 x16 slot
– Supports x16 speed
– 1st, 2nd and 3rd Gen AMD Ryzen™
– Supports x8 speed
– Ryzen™ with Radeon™ Vega Graphics
– 2nd Gen AMD Ryzen™ with Radeon™ Graphics
– A-series
– Athlon™ X4
– Supports x4 speed
– AMD® Athlon™ with Radeon™ Vega Graphics
– PCIe 2.0 x1 slot

Onboard Graphics:
– 1 x DVI-D port, supports a maximum resolution of 1920×1200 60Hz1,2
– 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096×2160 24Hz1,2

Storage:
– 4 x SATA 6Gb/s ports
– Supports RAID 0, RAID1 and RAID 10
– 1x M.2 slot (Key M)
– Supports PCIe 3.0 x4 and SATA 6Gb/s
– 1st, 2nd and 3rd Gen AMD Ryzen™
– Ryzen™ with Radeon™ Vega Graphics
– 2nd Gen AMD Ryzen™ with Radeon™ Graphics
– Supports PCIe 3.0 x2 and SATA 6Gb/s
– AMD® Athlon™ with Radeon™ Vega Graphics
– A-series
– Athlon™ X4

Usb:
– AMD® B450 Chipset
– 6x USB 3.2 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
– 6x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)

Audio:
– Realtek® ALC892 Codec
– 7.1-Channel High Definition Audio

Lan:
– 1 x Realtek® 8111H Gigabit LAN controller

Internal Connectors:
– 1x 24-pin ATX main power connector
– 1x 4-pin ATX 12V power connector
– 4x SATA 6Gb/s connectors
– 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
– 1x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports)
– 1x 4-pin CPU fan connector
– 1x 4-pin system fan connector
– 1x Front panel audio connector
– 2x Front panel connectors
– 1x TPM module connector
– 1x Chassis Intrusion connector
– 1x Serial port connector
– 1x Clear CMOS jumper

Dimensions:
– 9.3 in. x 7.9 in. (23.6 cm x 20.0 cm)
– m-ATX Form Factor

Mounting:
– 6 mounting holes

Operating System:
– Support for Windows® 10 64-bit
– Support for Windows® 7 64-bit
– To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU
