Sold out

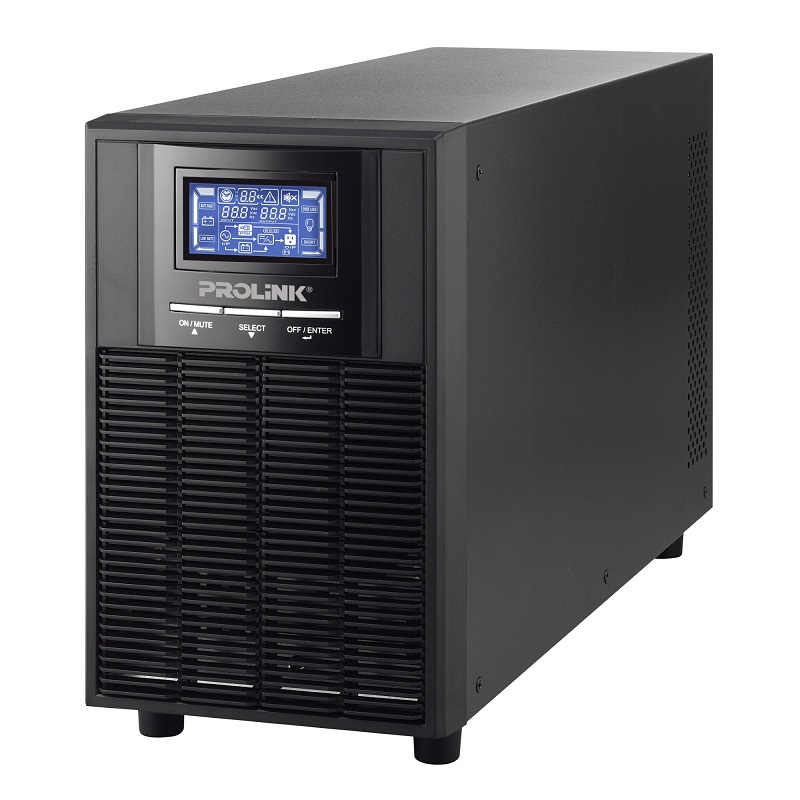

PROLINK PR0903ES-4U 3KVA ONLINE - Image 1
Click to enlarge

PROLINK PR0903ES-4U 3KVA ONLINE

SKU: LUP002
  • Capacity: 3000VA / 2400W
  • Phase: Single-phase
  • Voltage: 200-240V AC
  • Input Connection: IEC 320-C20
  • Output Connections: 4 x Universal sockets, Terminal
  • Battery: 12V / 9Ah x 6 (Standard), External support for Long-Run model
  • Recharge Time: 4 hours to 90%
  • Frequency: 45-70Hz (Input), 50/60Hz ±0.3Hz (Battery mode)
  • LCD Display: Load Level, Battery Level, AC/Battery/Bypass Mode, Fault
  • Communication Ports: USB, RS-232
  • Weight: Standard – 27.6 kg, Long-Run – 7.4 kg

warranty

රු165,000.00

0 People watching this product now!
WARRANTY :
2 Years

Out of stock

Add to wishlist
Add to compare

Description

General Specifications:

  • Type: Tower
  • Phase: Single-phase with ground
  • Rating: 3000 VA / 2400 W
  • Standard Model Dimensions: 421 x 190 x 318 mm (D x W x H)
  • Weight: 27.6 kg
  • Long-Run Model Dimensions: 397 x 145 x 220 mm (D x W x H)
  • Weight: 7.4 kg

Input:

  • Connection Type: IEC 320-C20
  • Nominal Voltage: 200/208/220/230/240 VAC
  • Voltage Range:
    • 110-300 VAC (Load at 50%)
    • 160-280 VAC (Load at 100%)
  • Frequency Range: 45 ~ 70 Hz
  • Power Factor: ≥ 0.99

Output:

  • Connection Type: 4 x Universal socket Terminal
  • Nominal Voltage: 200/208/220/230/240 VAC
  • Voltage Regulation: ±1%
  • Frequency Range:
    • Synchronized Mode: 47 ~ 53 Hz or 57 ~ 63 Hz
    • Battery Mode: 50 Hz ± 0.25 Hz or 60 Hz ± 0.3 Hz
  • Current Crest Ratio: 3:1
  • Harmonic Distortion:
    • ≤3% THD (Linear load)
    • ≤6% THD (Non-linear load)

Alarm & Indicators:

  • Battery Mode: Beeps every 4 seconds
  • Low Battery: Beeps every second
  • Overload: Beeps twice every second
  • Fault: Continuous beep
  • LCD Display: Shows Load Level, Battery Level, AC Mode, Battery Mode, Bypass Mode, and Fault

Connectivity, Control & Monitoring:

  • Front Panel: Status LED, Function keys, LCD display
  • Communication Ports: Smart RS232, USB

Battery:

  • Standard Model Type: 12V / 9Ah
  • Number of Batteries: 6
  • Recharge Time: 4 hours to 90% capacity
  • Long-Run Model: External battery-supported
  • Battery Count: 6 / 8 (depending on external capacity)
  • Charging Current: Adjustable (1A / 2A / 4A / 6A)

Rear Panel:

  1. AC Input
  2. Input Circuit Breaker
  3. USB Communication Port
  4. RS-232 Communication Port
  5. Intelligent Slot
  6. Output Receptacles
  7. Output Circuit Breaker
  8. Output Terminal
