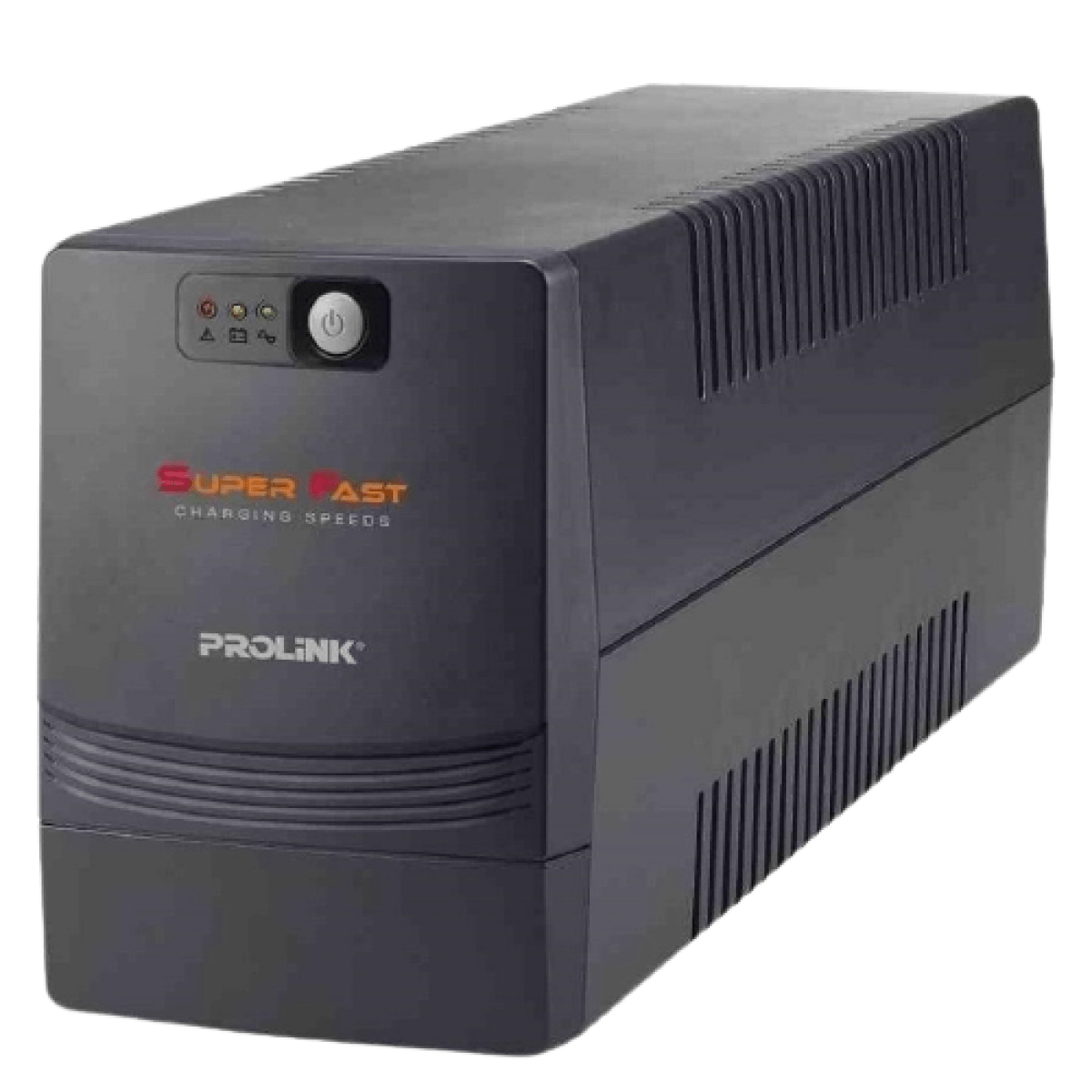

UPS 1.2KVA UPS PRO 1201SFC PROLINK

SKU: CUP004
  • – Built-in super fast charger, battery can be recharged to 90% of its capacity within 3 hours
  • – Excellent microprocessor control guarantees high reliability
  • – Boost and buck AVR for voltage stabilization
  • – Auto restart while AC is recovering
  • – Simulated sine wave
  • – Off-mode charging
  • – Cold start function
warranty

efficient warranty

රු21,400.48

0 People watching this product now!
WARRANTY :
2 Years

In stock

or 3 X රු 7,133.49 with Koko *
Add to wishlist
Add to compare

Description

Capacity
  • 1200VA
Input Voltage Range
  • 140 – 300V ± 5%
Frequency
  • 50Hz/60Hz (Auto-sensing)
Phase
  • Single + GND
Output Voltage Range
  • 230VAC +12% -14%
Battery Mode
  • 230VAC +10% -10%
Frequency
  • 50Hz ± 1% (Battery Mode)
Waveform
  • – Simulated Sine Wave (Battery Mode)
  • – Sine Wave (AC Mode)
Transfer Time
  • 2ms typical
Battery Type
  • 12V/8.2AH – 2pcs
Backup Time
  • 8 – 30 minutes depending on load
Recharge Time
  • 2 – 4 hours recover to 90% capacity
Protection / Monitoring Short Circuit Protection
  • Yes (Line Mode and Battery Mode)
Surge Protection
  • Yes
Alarm
  • Audible & Visual
UPS Protection
  • Load auto sensing and abnormal protection
Overload Protection
  • – Line mode : 100 – 120% 5 mins change to fault mode >120% change to fault mode shutdown immediately
  • – Battery mode : 100 – 110% alarm & shutdown in 10 secs >120% shutdown immediately
Intelligent Battery Management
  • Prevent overcharging of battery
  • Protect battery and prolong battery life
Interface Interface*
  • RJ11
General Software
  • Support Windows® 2000/ 2003/ XP/ Vista/ 2008/ 7, Linux, Unix, and Mac
Noise Level
  • <40dB
Temperature
  • 0°C – 40°C
Humidity
  • 0 – 90%
Power Factor
  • Up to 0.7
Built in AVR
  • TRUE Full AVR (3 steps)
Physical Dimension (mm) D x W × H
  • 320*130*182mm (product only)
  • 390*192*275mm (with box)
Net Weight (kgs)
  • 8.6KG (product only)
  • 9KG(with box)
