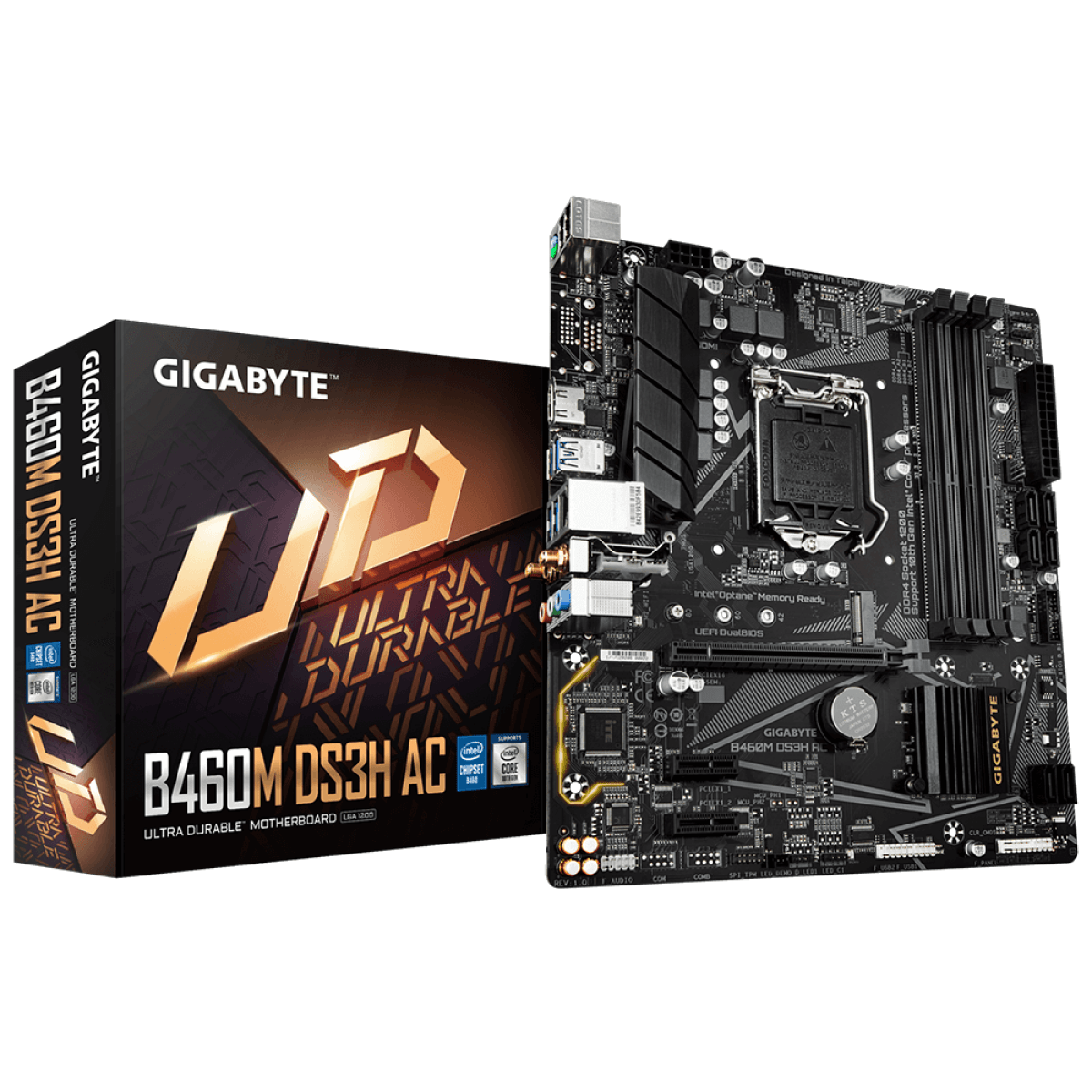

GIGABYTE B460M DS3H AC (rev. 1.x)

Name: GIGABYTE B460M DS3H AC (rev. 1.x)
SKU: CMO178
Availability: OutOfStock

SKU: CMO178

B460M DS3H AC (rev. 1.x)

Intel^® B460 Ultra Durable Motherboard with GIGABYTE 8118 Gaming LAN, PCIe Gen3 x4 M.2, 7 Colors RGB LED Strips Support, Anti-Sulfur Resistor, Smart Fan 5, DualBIOS™

Supports 10th Gen Intel^® Core™ Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface
Intel^® Dual Band 802.11ac WIFI & BT 4.2
RGB FUSION supports RGB LED Strips in 7 Colors
GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
Anti-Sulfur Resistors Design
GIGABYTE UEFI DualBIOS™
Intel^® Optane™ Memory Ready

රු30,503.00

0 People watching this product now!

WARRANTY :

Out of stock

Add to wishlist

Add to compare

Description

Intel^® B460 Chipset

CPU
1. Support for 10th Generation Intel^® Core™ i9 processors/Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/Intel^® Core™ i3 processors/Intel^® Pentium^® processors/Intel^® Celeron^® processors in the LGA1200 package
2. L3 cache varies with CPU
(Please refer “CPU Support List” for more information.)
Chipset
1. Intel^® B460 Express Chipset
Memory
1. Intel^® Core™ i9/i7 processors:
  Support for DDR4 2933/2666/2400/2133 MHz
2. Intel^® Core™ i5/i3/Pentium^®/Celeron^® processors:
  Support for DDR4 2666/2400/2133 MHz
3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
4. Dual channel memory architecture
5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
7. Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel^® HD Graphics support:
1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
  * Support for HDMI 1.4 version and HDCP 2.3.
Maximum shared memory of 512 MB
Audio
1. Realtek^® ALC887 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
  * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.
LAN
1. Realtek^® GbE LAN chip (1000 Mbit/100 Mbit)
Wireless Communication module
Intel^® Wi-Fi 3168
1. Wi-Fi 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
2. BLUETOOTH 4.2
3. Support for 11ac wireless standard and up to 433 Mbps data rate
  * Actual data rate may vary depending on environment and equipment.
Expansion Slots
1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
2. 2 x PCI Express x1 slots
  (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Supports up to ASPM L1.2 power management protocols.
Storage Interface
1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
2. 6 x SATA 6Gb/s connectors
3. Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
  * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
Intel^® Optane™ Memory Ready
M.2 connectors support up to ASPM L1.2 PCIe power management protocols.
USB
Chipset:
1. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
2. 2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
1. 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 2 x system fan headers
5. 2 x addressable LED strip headers
6. 2 x RGB LED strip headers
7. 6 x SATA 6Gb/s connectors
8. 1 x M.2 Socket 3 connector
9. 1 x front panel header
10. 1 x front panel audio header
11. 1 x USB 3.2 Gen 1 header
12. 2 x USB 2.0/1.1 headers
13. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
14. 1 x Clear CMOS jumper
Back Panel Connectors
1. 1 x PS/2 keyboard/mouse port
2. 1 x HDMI port
3. 4 x USB 3.2 Gen 1 ports
4. 2 x USB 2.0/1.1 ports
5. 1 x RJ-45 port
6. 2 x SMA antenna connectors (1T1R)
7. 3 x audio jacks
I/O Controller
1. iTE^® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
  * Whether the fan speed control function is supported will depend on the fan you install.
BIOS
1. 2 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  @BIOS
  EasyTune
  Fast Boot
  Game Boost
  ON/OFF Charge
  RGB Fusion
  Smart Backup
  System Information Viewer
2. Support for Q-Flash
3. Support for Xpress Install
Bundled Software
1. Norton^® Internet Security (OEM version)
2. Realtek^® 8118 Gaming LAN Bandwidth Control Utility
Operating System
1. Support for Windows 10 64-bit
Form Factor
1. Micro ATX Form Factor; 24.4cm x 22.5cm
Remark
1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
