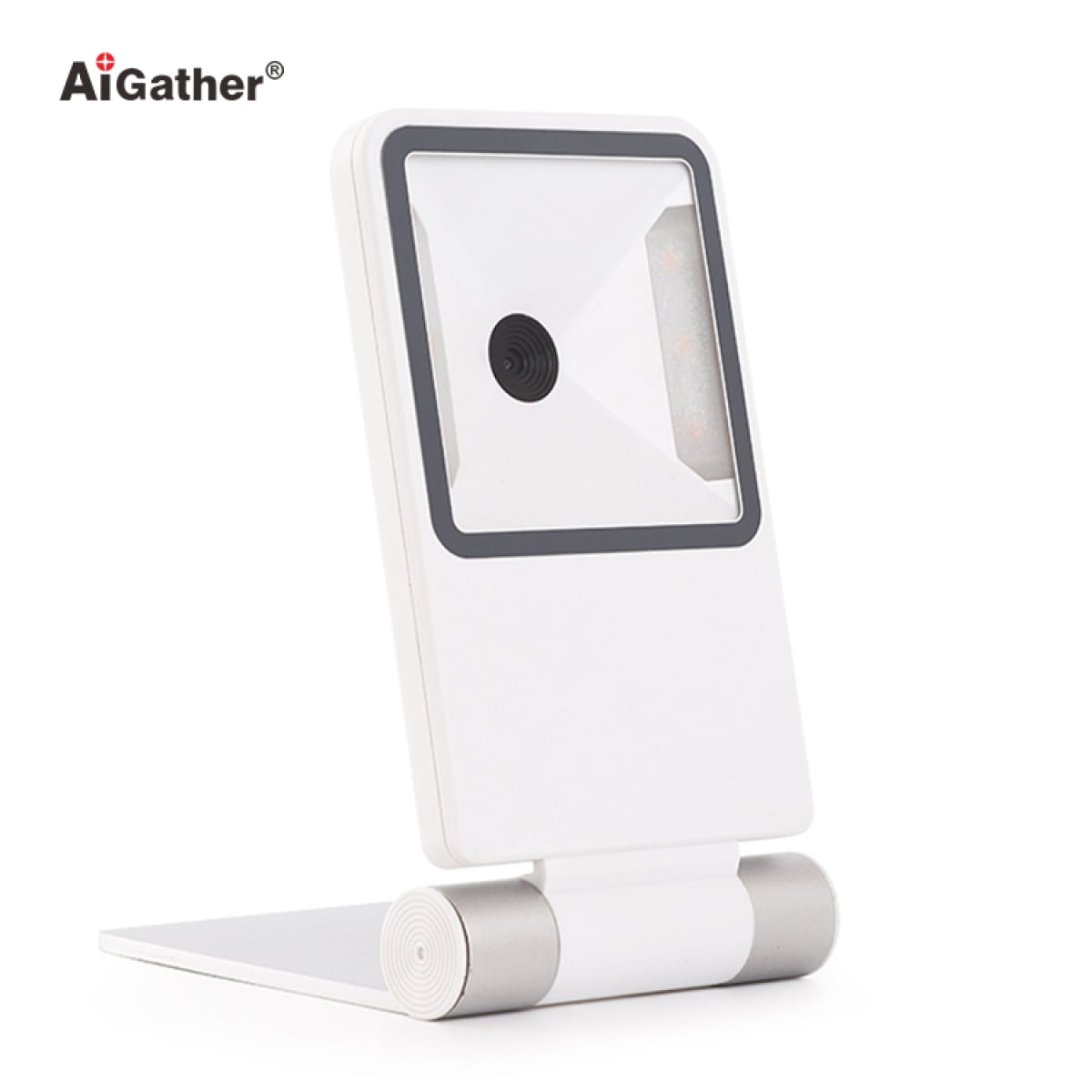

BARCODE SCANNER-AIGATHER A-20 2D DESKTOP

Light Source

LED White LED

Image sensor

640*480 pixels

Resolution(maximum)

0.102mm / 4mils

Print contrast ratio(minimum)

≥15%

Motion tolerance

1.22M/sec

Reading Angle

Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60°

Decoding Capability

1D: All standard 1D codes, including GS1 DataBar™ linear code can be automatically distinguished and decoded.

2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code

Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked

Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417.

Reading Indicators

Buzzer(adjustable tone）

Typical depth of Filed

Precision Barcode  Depth of Filed

5mil  CODE128  40mm—110mm

5mil  EAN-13  40mm—110mm

13.34mil EAN-13  65mm—300mm

5mil  PDF417  40mm—100mm

10mil  PDF417  30mm—210mm

15mil  PDF417  30mm—310mm

20mil  DM   20mm—110mm

(The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.)

Physical characteristics

Color available

White; Blue

Dimensions（L*W*H）

77*100*123mm

Weight

209g

Cable

1.55M

Electrical Parameter

Current

Working current（Standard): （Standard):

Input Voltage

5 VDC (+/- 10%)/500mA

Environmental Parameter

ESD protection(Air discharge)

8 kV

Drop resistance

Withstands repeated drops from 1.2m/4.0 ft onto a concrete surface.

Particulate and water sealing

IP52

Temperature

Operation: 0 to 40 °C

Storage/Transport: -40 to 70 °C

Humidity(non-condensing)

5 – 95%

Ambient light

0 -100,000 lux

Interfaces

Interfaces

RS-232; USB HID; USB COM;HID POS available as per customer’s needs
