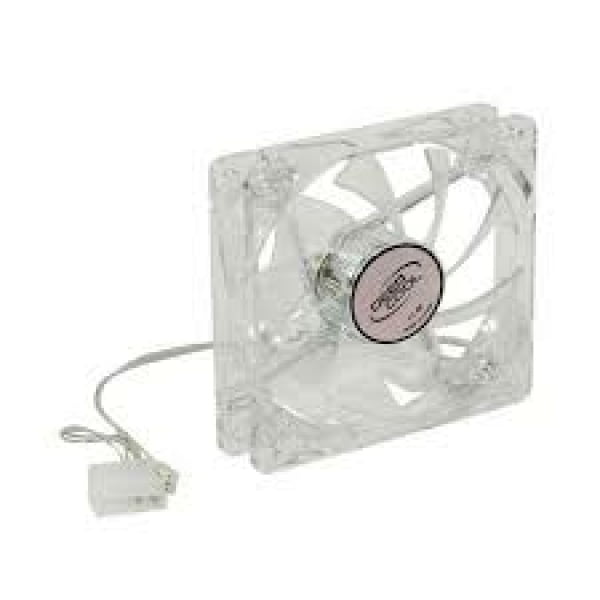

120L-A CASING FAN
120L-A CASING FAN රු1,850.00
Sold outNew
BARCODE SCANNER- AIGATHER A-700 DESKTOP BARCODE SCANNER - Image 1
Click to enlarge

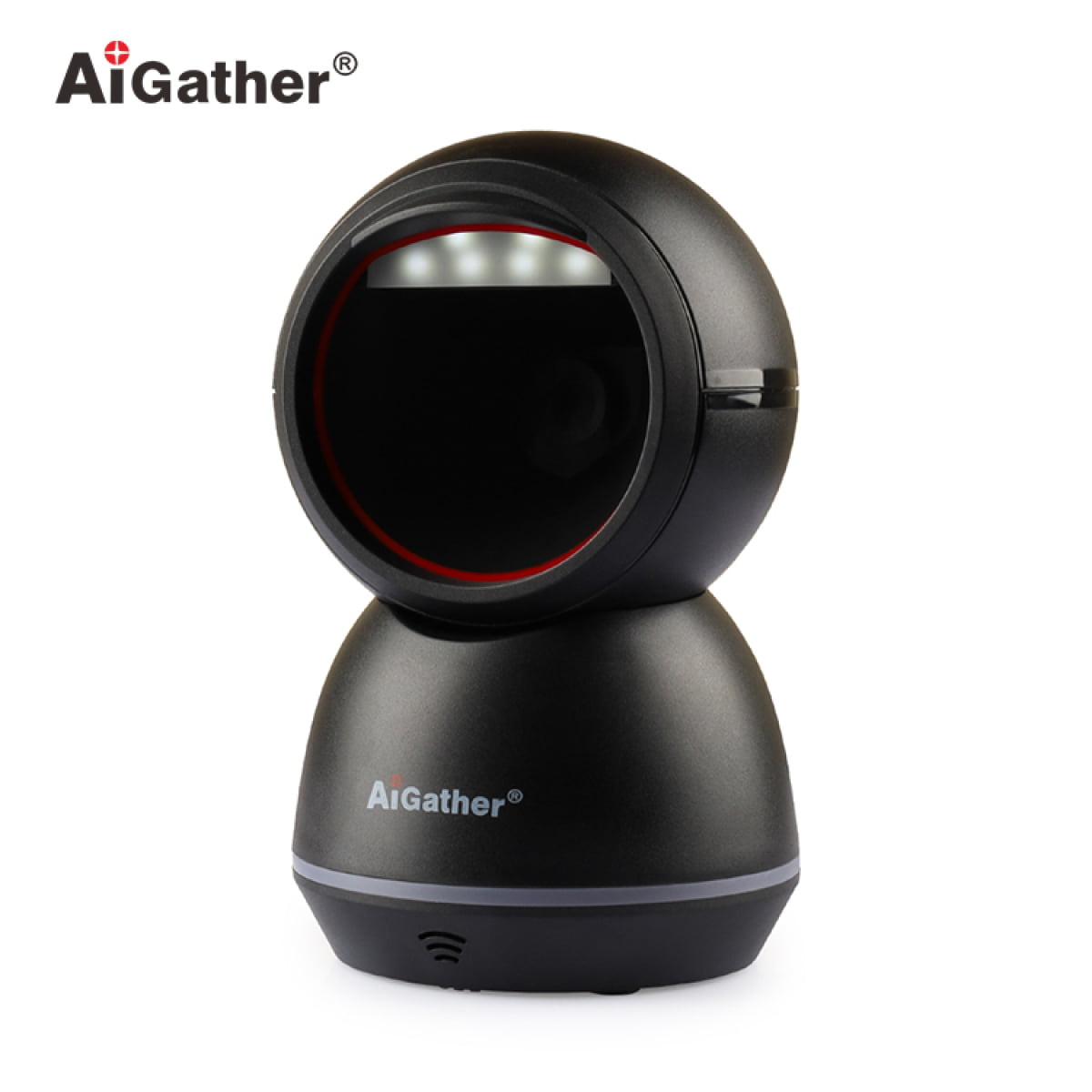

BARCODE SCANNER- AIGATHER A-700 DESKTOP BARCODE SCANNER

SKU: CSC024

DESKTOP BARCODE SCANNER AIGATHER A-700

Features – Stylish and compact, attractive; – Automatic dormant mode, energy-saving; – 300,000 pixels global shutter, with great speed and precision; – Minimum resolution: 4 mils; – Bright White LED for illuminating scanning surfaces; – Read all mainstream 1D&2D bar codes; – Strong body with scratch-resistant material; – Quickly read various LCD and OLED mobile phone screen codes and printed product codes.

Manufacturer warranty

රු0.00

0 People watching this product now!
WARRANTY :

Out of stock

Add to wishlist
Add to compare

Description

Features
A-700 Specification

Performance Parameter

Material

ABS+PC

Light Source

LED White Light

Image sensor

640*480 pixels Global Shutter

Resolution(maximum)

4mil

Print contrast ratio(minimum)

≥15%

CPU

600M

Imaging Speed

120 fps

Motion tolerance

1.6M/sec

Reading Angle

Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60°

Decoding Capability

1D

All standard 1D codes, including GS1 DataBar™ linear code can be automatically distinguished and decoded.

2D

Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code

Stack code

GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417

Reading Indicators

LED light & Buzzer(adjustable tone and volume)

Typical Depth of Field

Precision

Barcode

Depth of Field

(The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.)

5mil

CODE128

0mm~70mm

5mil

EAN-13

0mm~70mm

13.34mil

EAN-13

0mm~240mm

5mil

PDF417

0mm~60mm

10mil

PDF417

0mm~170mm

15mil

PDF417

0mm~270mm

20mil

DM

0mm~80mm

Physical Characteristics

Color

Black

Dimensions(L*W*H)

96*106*157mm

Weight

278g

Cable

1.8m

Electrical Parameter

Current

Working current(Standard):

Standby current(Standard):

Input Voltage

5 VDC (+/- 10%)/500mA

Environmental Parameter

ESD protection(Air discharge)

8 kV

Drop resistance

Withstands repeated drops from 1.2m/4.0 ft onto a concrete surface.

Particulate and water sealing

IP52

Temperature

Operation: -20 to 40 °C

Storage/Transport: -40 to 70 °C

Humidity(non-condensing)

5 – 95%

Ambient light

0 -100,000 lux

Interfaces

RS-232; USB HID; USB COM; HID POS available as per customer’s needs

Warranty

1 Year
