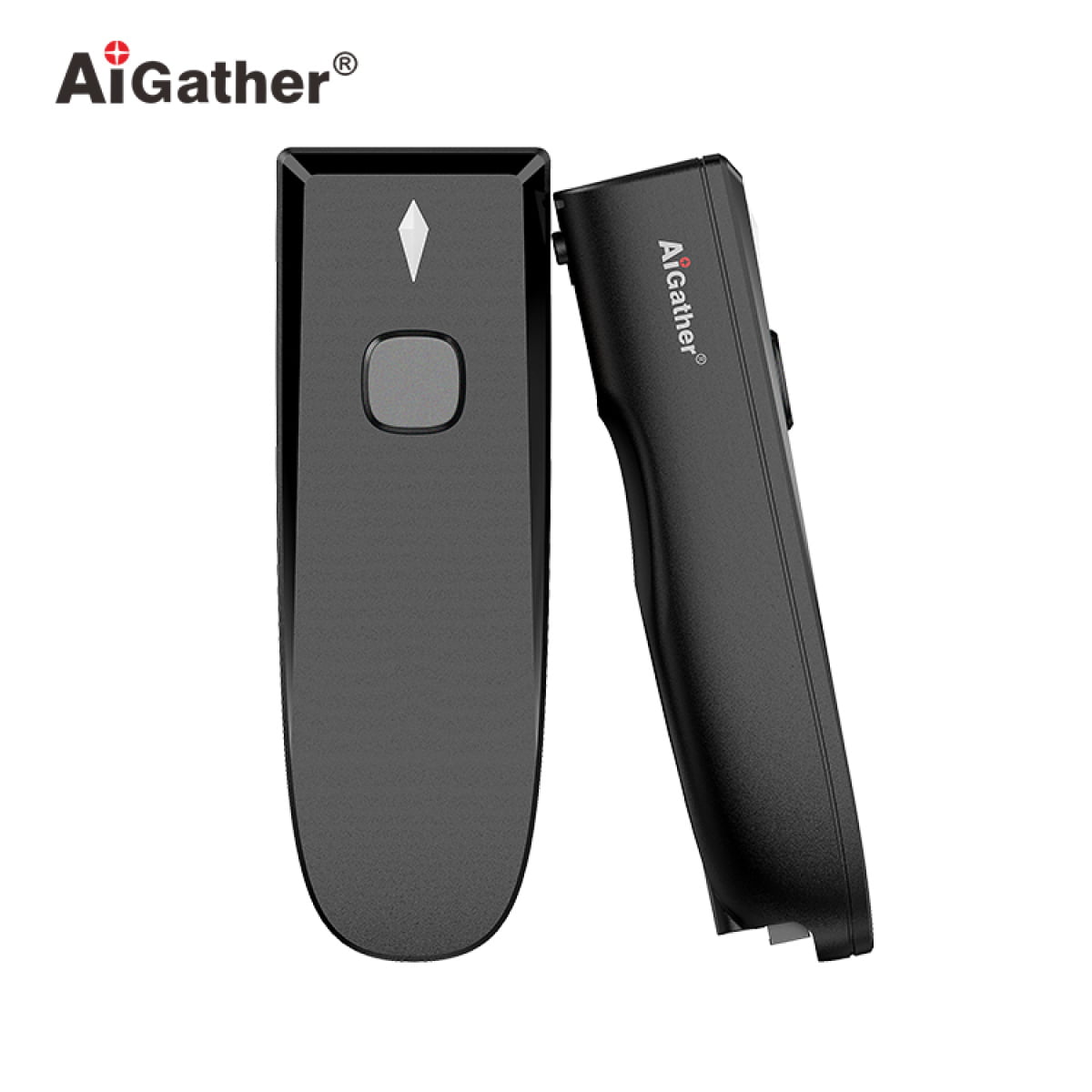

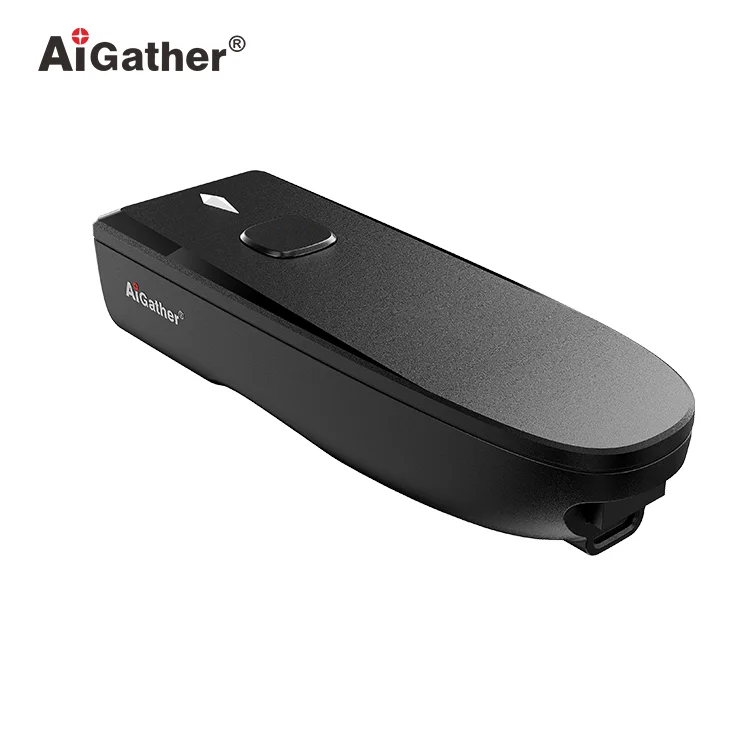

AIGATHER A-M2SR 2D WIRELESS BARCODE SCANNER

SKU: CSC021

Pocket 2D Barcode Scanner

Features: 1. Type-C cable for charging and transmission. 2. Internal 2.4G Receiver hole. 3. The rear is designed with a reset button. 4. Bluetooth+Wired(standard), 2.4G is optional. 5. Transmission distance: 50m for 2.4G; 15m for Bluetooth. 6. 4M storage memory, can save over 100,000 barcodes.



රු22,000.00

20 People watching this product now!
WARRANTY :

Out of stock

Description

Features

Performance Parameter
Light SourceLED White light
Aiming LightGreen Dot
Image sensor1280*800 pixels
CPU1.2G Dual-core
Resolution(maximum)4mils
Print contrast ratio(minimum)20% Reflection Difference
Reading AnglePitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60°
Decoding Capability1D: All standard 1D codes, including GS1 DataBarâ„¢ linear code can be automatically distinguished and decoded.

2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code

Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417.

Reading IndicatorsLED light&Buzzer(adjustable tone and volume)
Typical depth of Field3.34mil  CODE 39  60mm—160mm

3.34mil  EAN-13  90mm—150mm

5mil     CODE39  70mm—240mm

5mil     EAN-13     70mm—230mm

13mil    UPC-A      40mm—450mm

5mil     PDF417  65mm—210mm

5mil      QR     75mm—140mm

10mil  QR   45mm—290mm

10mil  DM   30mm—260mm

20mil  QR   20mm—480mm

(The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.)

Electrical Parameter
CurrentWorking current(Standard): 280 mA  Standby current(Standard): 130 mA
Input Voltage5 VDC (+/- 10%)/500mA
Environmental Parameter
ESD protection(Air discharge)8 kV
Drop resistanceWithstands repeated drops from 1.2m/4.0 ft onto a concrete surface.
TemperatureWorking: 0 to 40 °C; Storage/Transport: -40 to 70 °C
Humidity(non-condensing)5 – 95%
Ambient lightIndoor: 0 to 6,000 lux; Outdoor: 0 to 86,000 lux
Cordless Parameter
2.4 Transmission distanceOpen space 50 meters
Bluetooth connection15m transmission distance(basic on open space)
Communication modeWireless real-time transmission/wired transmission/storage mode
Battery capacity1500mAh
Continuous working timeFull power can read over 8W commodity barcodes
Charging time3H
