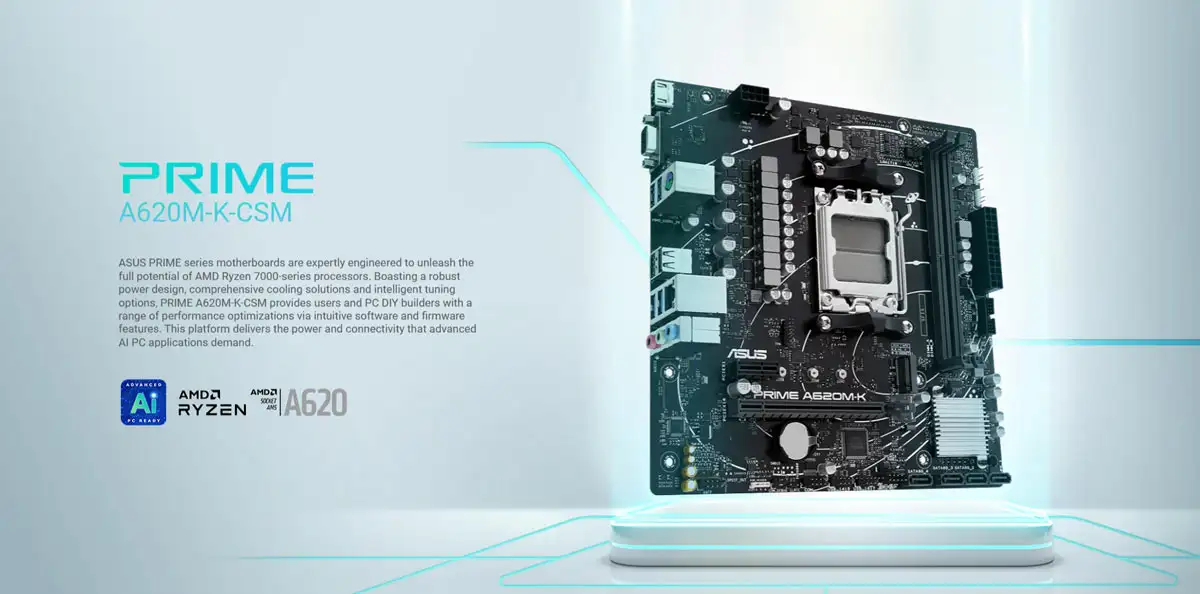

ASUS PRIME A620M-K DDR5 MOTHERBOARD

ASUS PRIME A620M-K Motherboard Specifications (Point Form)

Model

• PRIME A620M-K
• Micro-ATX Form Factor (22.6 cm x 22.1 cm)

CPU Support

• AMD Socket AM5
• AMD Ryzen™ 7000 & 8000 Series Desktop Processors
• Supports up to AMD 120W CPU

Chipset

• AMD A620 Chipset

Memory

• 2 x DIMM slots (Max. 96GB)
• DDR5 7200+(OC) supported
• Dual Channel Architecture
• Supports AMD EXPO™

Graphics

• 1 x VGA port
• 1 x HDMI™ port (4K@60Hz)

Expansion Slots

• 1 x PCIe 4.0 x16 slot
• 1 x PCIe 3.0 x1 slot

Storage

• 1 x M.2 Slot (PCIe 4.0 x4)
• 4 x SATA 6Gb/s Ports
• Supports RAID 0/1/10

Ethernet

• Realtek 1Gb Ethernet

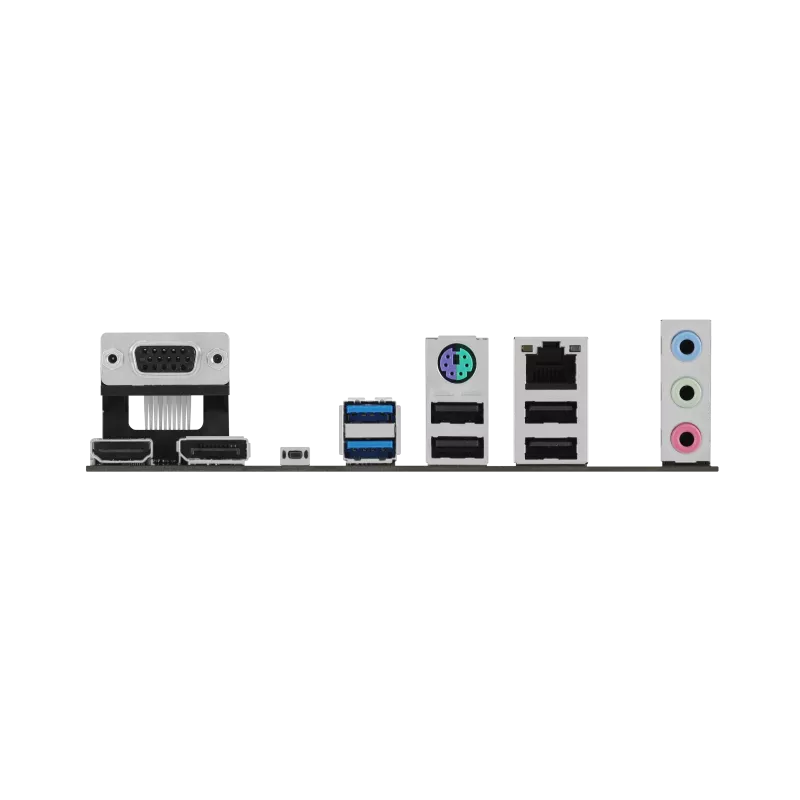

USB Ports

• Rear: 4 x USB 3.2 Gen 1, 2 x USB 2.0
• Front: Supports 2 x USB 3.2 Gen 1, 4 x USB 2.0

Audio

• Realtek 7.1 Surround Sound
• Supports 24-Bit/192kHz Playback

Cooling

• 1 x CPU Fan Header
• 1 x Chassis Fan Header

RGB & Miscellaneous

• 2 x Addressable Gen 2 headers
• 1 x Aura RGB header

Special Features

• ASUS 5X Protection III
• Armoury Crate
• AI Suite 3

Accessories

• 2 x SATA Cables
• I/O Shield
• M.2 Screw Package

OS Compatibility

• Windows® 11, Windows® 10 64-bit
