Esonic H61DA1 DDR-3 Intel H61 LGA1155 Processor Motherboard

SKU: CMO352

Memory Bank: 2 DDR3 DIMM
CPU Type: Core I7/Core I5/Core I3/Pentium/Celeron
Memory channel: Double
Hard Drive Interface: SATA
Ports: Ethernet, PCI-Express X1, PCI-Express X16, PS2, SATA, USB 2.0, USB 3.0, VGA, HDMI, Ethernet
Maximum Ram Capacity: 16GB
Form Factor: Micro-ATX
Memory Type: DDR3
Graphics Card Type: Integrated-need CPU support

රු17,000.00

0 People watching this product now!

1 Year

Out of stock

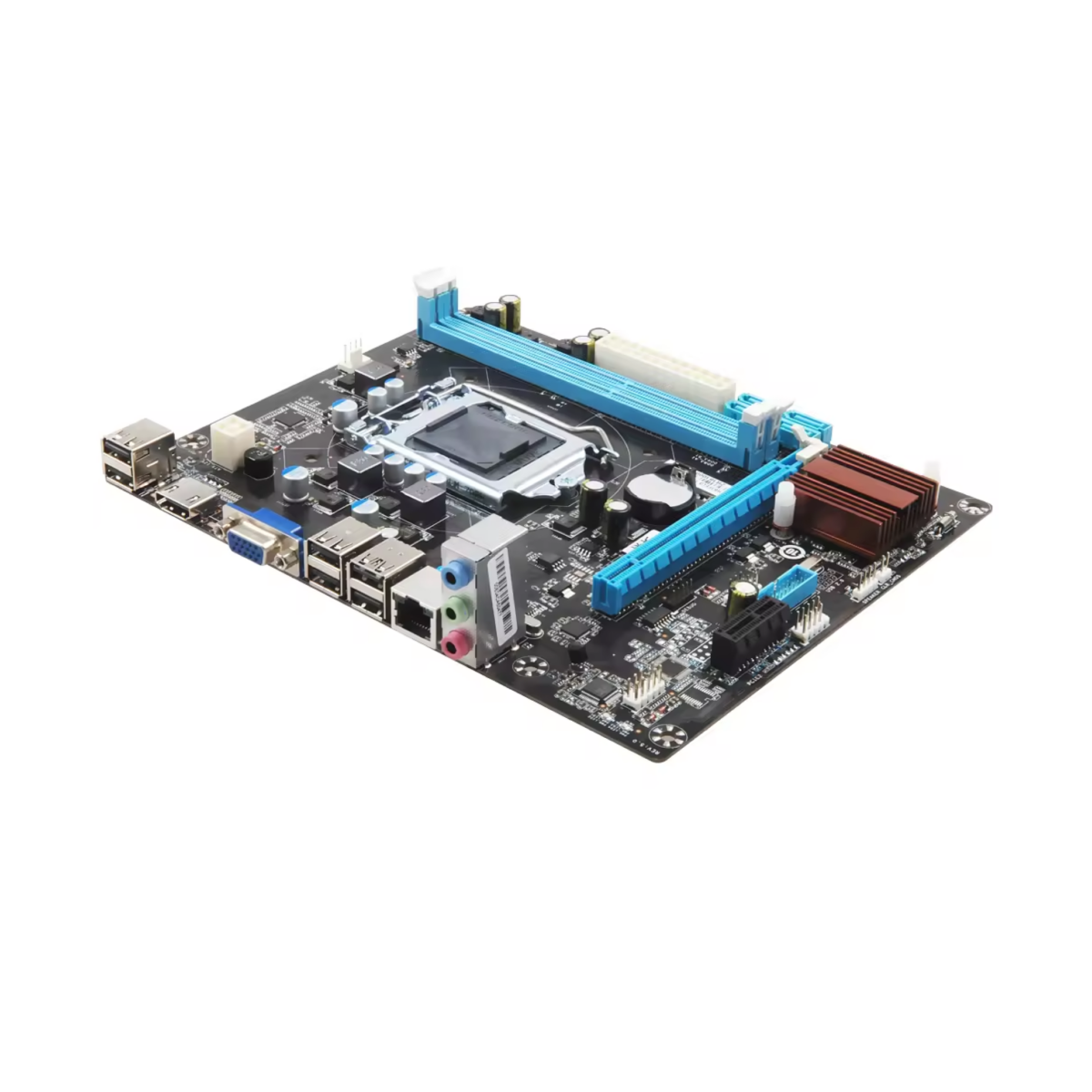

Esonic H61DA1 DDR-3 Intel H61 LGA1155

Specifications:

Processor: Intel® Socket LGA1155 for 3rd / 2nd generation i7 / Core ™ i5 / Core ™ i3 / Pentium® / Celeron® processors. Supports Intel® 22nm CPU. Supports Intel® 32nm
CPU. Supports Intel® Turbo Boost Technology 2.0
Chipset: Intel® H61 Chipset
Memory Support: DDR3 1066/1333 / SDRAM 2 * DDR3 DIMMs (240 pin / 1.5V)
LAN: Supports Realtek® 8105E 10 / 100M Mbps
Audio: Realtek® 661 Integrated Chip Flexible 6-channel audio with jack sensor Vista Premium compatible
Storage: 4 * SATA 3Gb / s ports
USB: 8 * USB 2.0 ports (6 on black back panel, 2 in the middle of card) 1 * 19-pin USB pin, for 2 USB ports

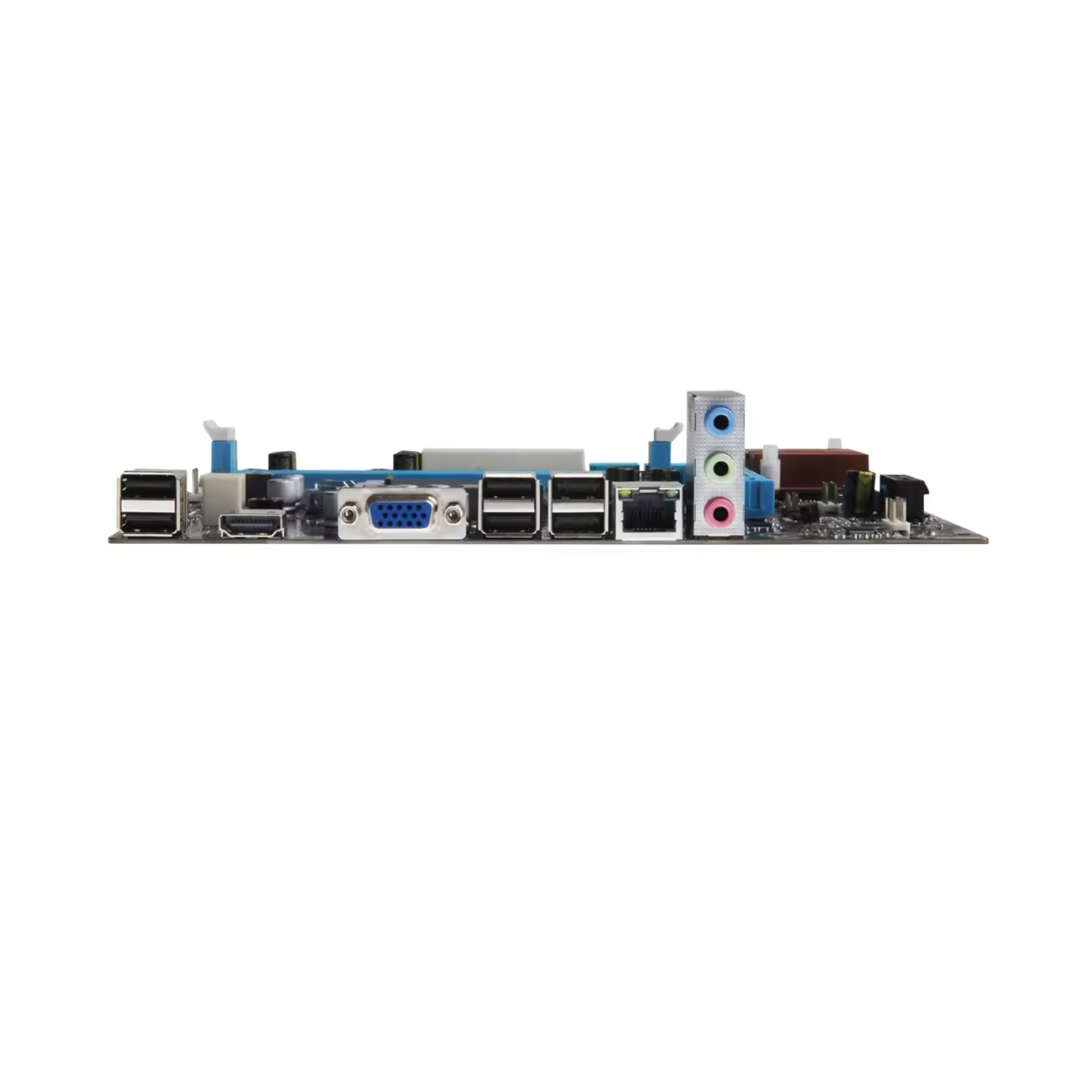

Rear panel:
1 x HDMI Port
4 x USB 2.0 Ports
2 x USB 3.0 Ports
1 x VGA Port
1 x LAN Jack
3 x Flexible audio jacks

Integrated pin headers / Connectors:
1 x USB 2.0 pin Connector
1 x USB 3.0 Pin Connector
1 x 19-pin USB pin connector
1 x pin COM connector

Slots:
1 x PCI Express x16 slot
1 x PCI Express x1 slot

Form factor:
Micro-ATX (21.1 cm x 16.8 cm)

Assembly:
4 mounting holes

Accessories:
1 x H61 Esonic Motherboard
1 x SATA Data cable (optional)
1 x I / O Backboard
1 x User manual
1 x Drives installed CD
