GIGABYTE Z390M

SKU: CMO159

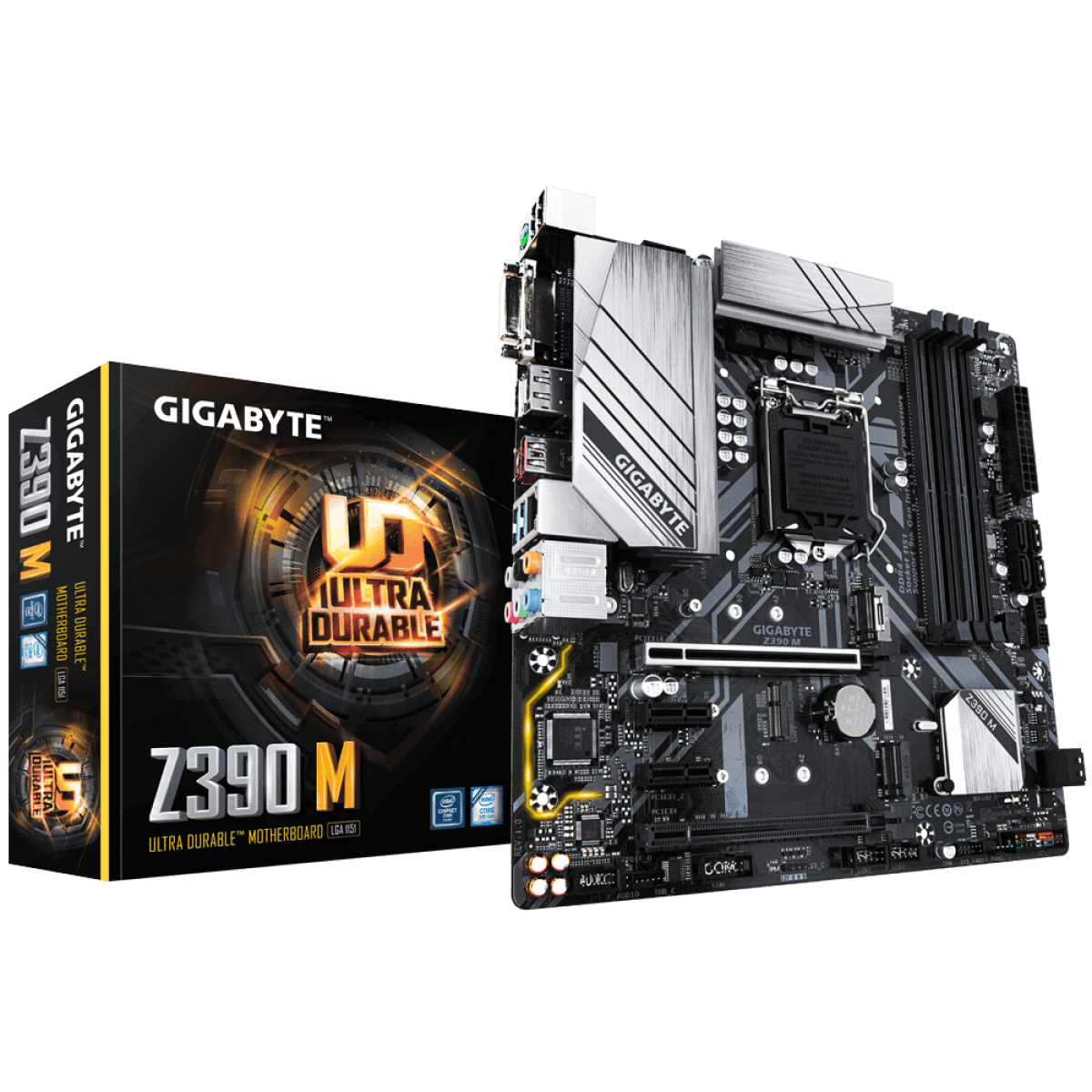

GIGABYTE  Z390 M (rev. 1.0)



Intel Z390 M Motherboard with Advanced Thermal Design, 2-Way CrossFire™ Multi-Graphics, Intel GbE LAN with cFosSpeed, Smart Fan 5, Dual M.2, PCIe X16 Slot Armor with Ultra Durable™ Design, CEC 2019



  • Supports 9th and 8th Gen Intel® Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4
  • Advanced Thermal Design
  • Dual NVMe PCIe Gen3 x4 22110/2280 M.2 Connectors
  • Multi-Way Graphics Support with PCIe Armor and Ultra Durable™ Design
  • Intel® GbE LAN with cFosSpeed Internet Accelerator Software
  • Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
  • Support RGB Light Strip in Full Colors
  • CEC 2019 Ready, Save the Power as Easy as One Click
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • Lightning-Fast Intel® Thunderbolt™ 3 AIC Support
  • Intel® Optane™ Memory Ready

රු36,993.00

6 People watching this product now!
WARRANTY :

Out of stock

Description

  • CPU
    1. Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
    2. L3 cache varies with CPU

    (Please refer “CPU Support List” for more information.)

  • Chipset
    1. Intel® Z390 Express Chipset
  • Memory
    1. 4 x DDR4 DIMM sockets supporting up to 128GB (32GB single DIMM capacity) of system memory**
      ** Please note that the support for system total memory size depends on the CPU installed.
    2. Dual channel memory architecture
    3. Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules

    (Please refer “Memory Support List” for more information.)

  • Onboard Graphics
    Integrated Graphics Processor-Intel® HD Graphics support:

    1. 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
      * The DVI-D port does not support D-Sub connection by adapter.
    2. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
      * Support for DisplayPort 1.2 version, HDCP 2.2, and HDR.
    3. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
      * Support for HDMI 1.4 version and HDCP 2.2.

    Maximum shared memory of 1 GB
    Actual support may vary by CPU.

  • Audio
    1. Realtek® ALC892 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF Out
  • LAN
    1. Intel® GbE LAN chip (10/100/1000 Mbit)
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    3. 2 x PCI Express x1 slots
      (All of the PCI Express slots conform to PCI Express 3.0 standard.)
    4. 1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI)
