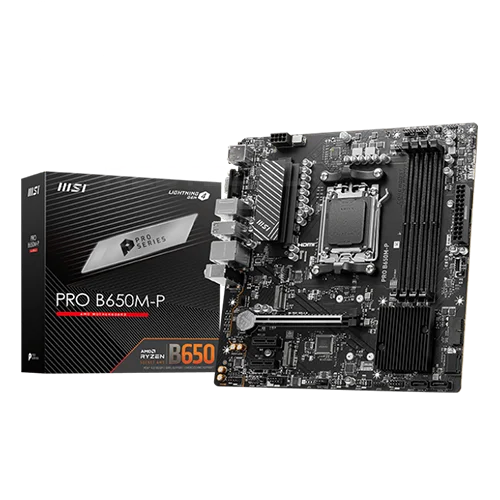

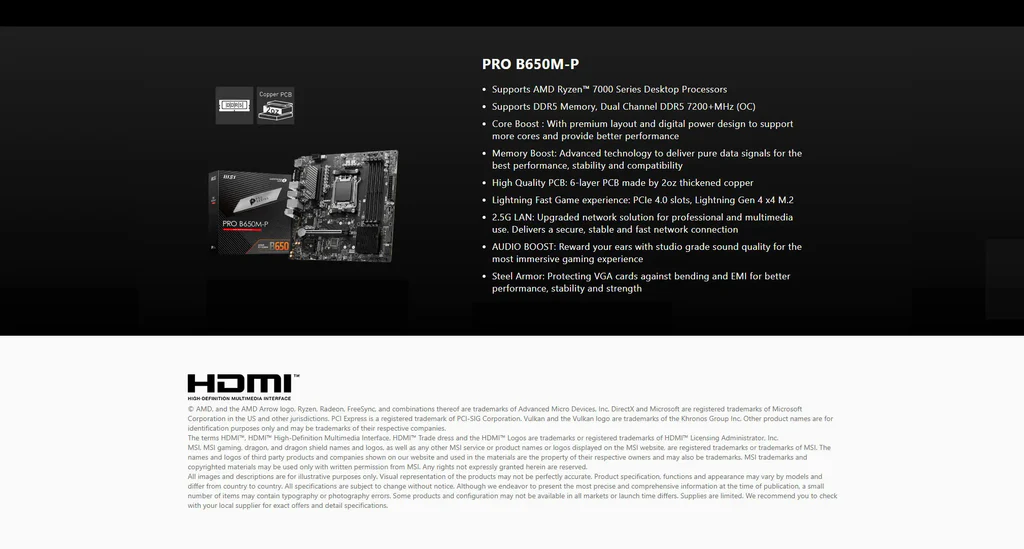

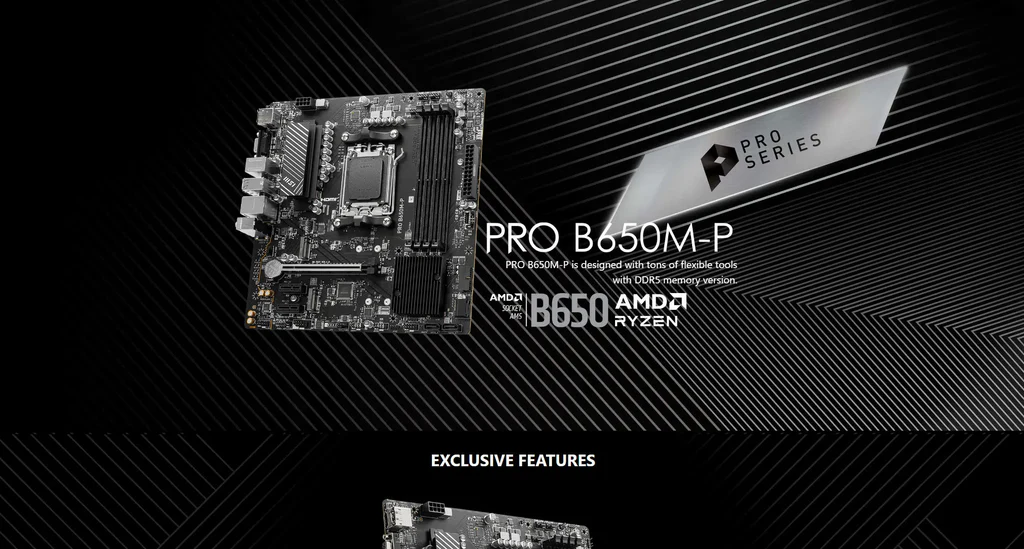

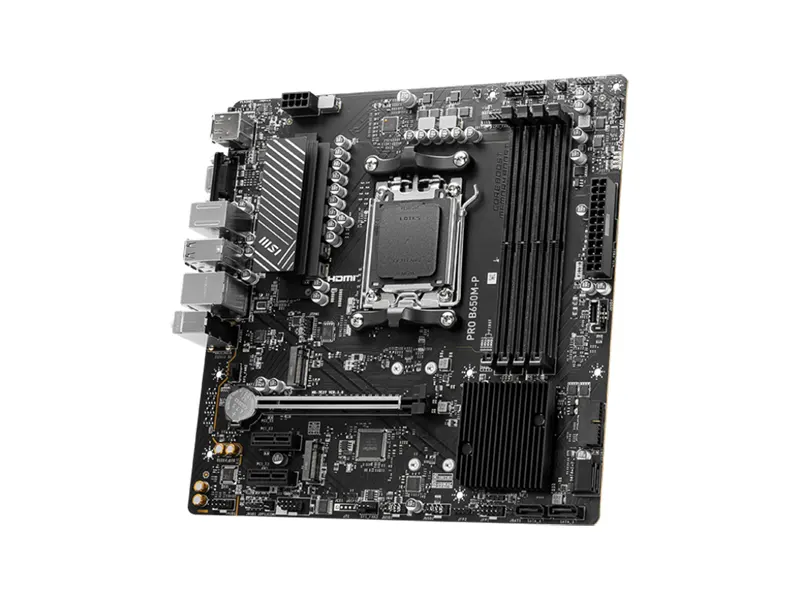

MSI PRO B650M P DDR5 MOTHERBOARD

SKU: LMO007

Chipset: AMD B650
CPU Support: AMD Ryzen™ 8000/7000 Series (Socket AM5)
Memory: 4x DDR5, up to 192GB, supports AMD EXPO, Dual-Channel
Memory Speed: Up to DDR5 7200+(OC) MHz
Graphics:
- HDMI™ 2.1 (4K 60Hz)
- DisplayPort 1.4 (4K 60Hz)
- VGA (1920×1200 60Hz)
PCI-E Slots:

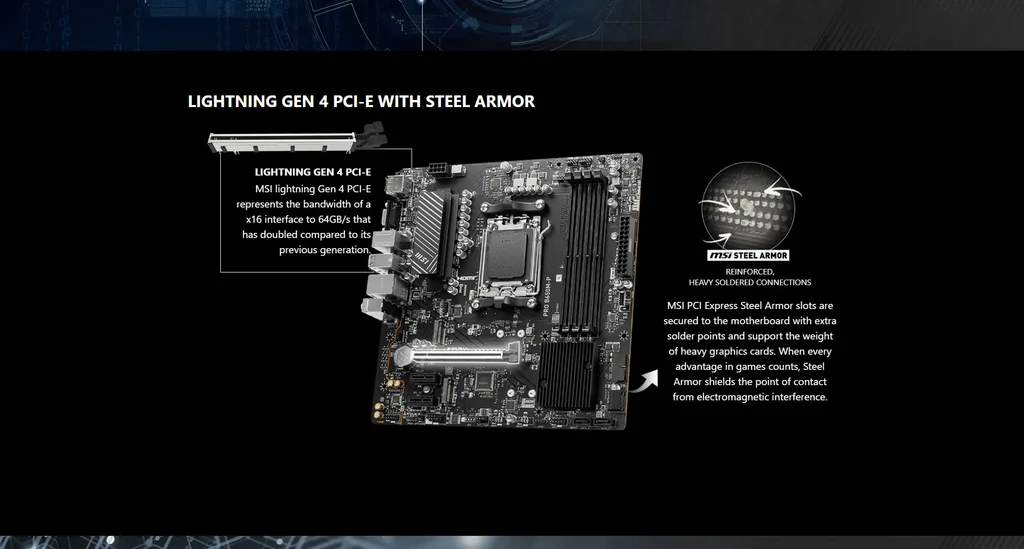

- 1x PCI-E x16 (Gen 4.0, from CPU)
- 2x PCI-E x1 (Gen 3.0, from Chipset)
Storage:
- 2x M.2 (PCIe 4.0 x4, supports 2280/2260)
- 4x SATA 6G
- Supports RAID 0, 1, 10 (SATA), RAID 0, 1 (M.2 NVMe)
USB Ports:
- Rear: 4x USB 2.0, 2x USB 3.2 Gen1, 2x USB 3.2 Gen2
- Front: 4x USB 2.0, 2x USB 3.2 Gen1, 1x USB 3.2 Gen2 Type-C
LAN: Realtek® 8125BG 2.5G
Audio: Realtek® ALC897, 7.1 HD Audio
LED Features: 4x EZ Debug LED

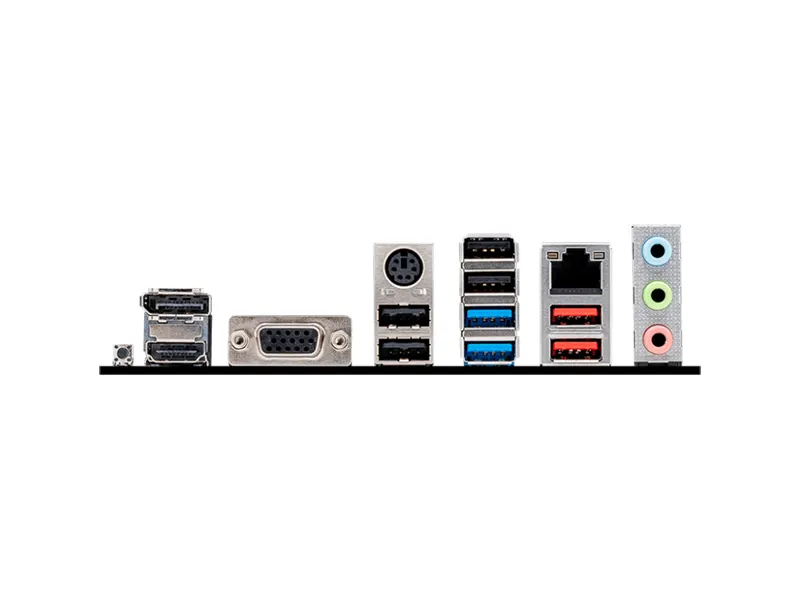

Back Panel Ports: DP, VGA, HDMI, USB, 2.5G LAN, Audio, Flash BIOS
Form Factor: mATX (243.84mm x 243.84mm)
OS Support: Windows 11/10 (64-bit)
