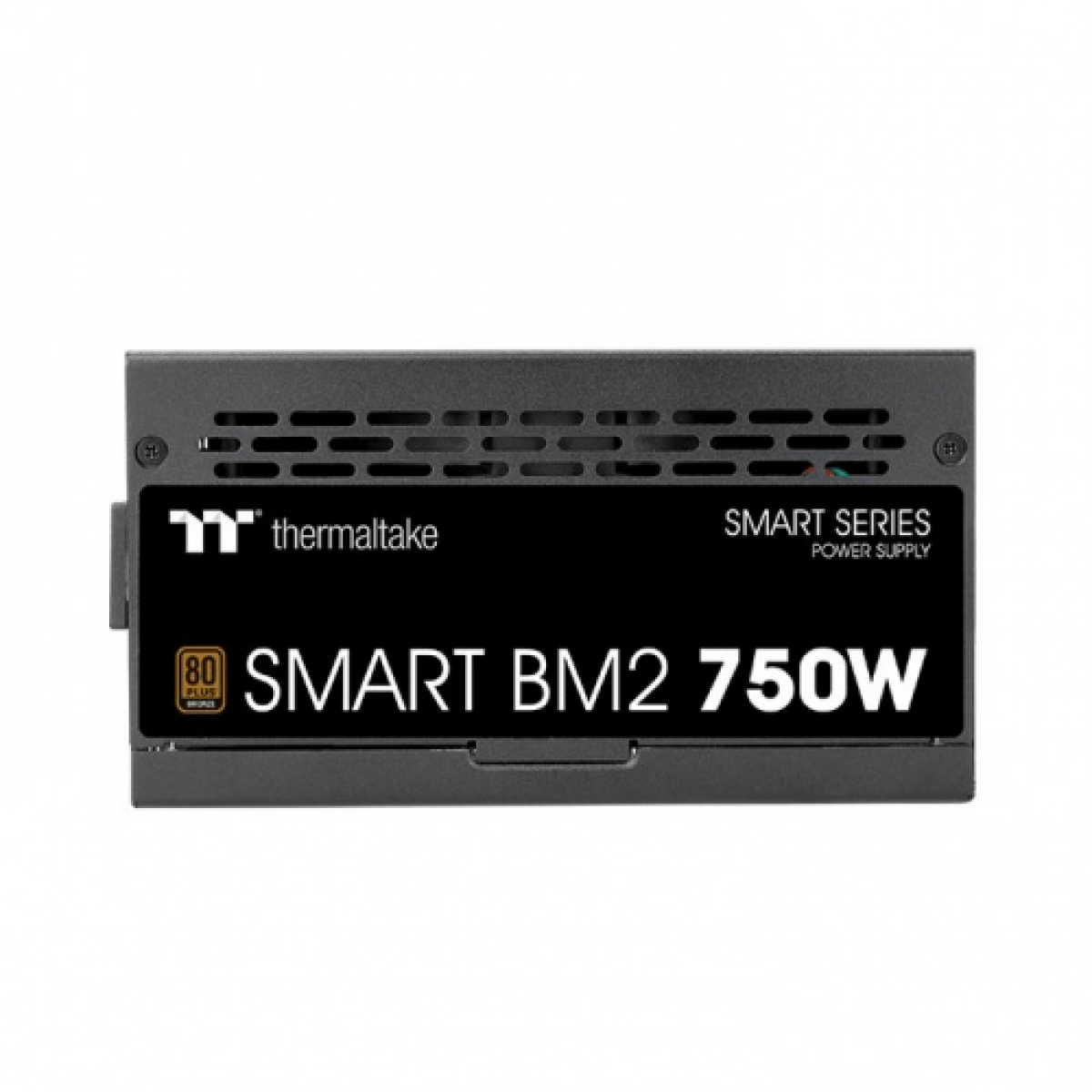

POWER SUPPLY SMART BM2 750W THERMALTAKE
80 PLUS Bronze certified semi modular PSU with Rifle Bearing fan.
0
People watching this product now!
Description
| P/N | PS-SPD-0750MNFABx-1 |
|---|---|
| WATTS | 750W |
| RGB FAN | No |
| MODEL | SP-750AH3CCB-B |
| TYPE | ATX 12V v2.4 and EPS v2.92 |
| MAX. OUTPUT CAPACITY | 750W |
| PEAK OUTPUT CAPACITY | 900W |
| COLOR | Black |
| DIMENSION ( W / H / D ) | 150mm(W) x 86mm(H) x 160mm(D) |
| PFC (POWER FACTOR CORRECTION) | Active PFC |
| POWER GOOD SIGNAL | 100-500 msec |
| HOLD UP TIME | > 12msec at 80% of full load at 230Vac input |
| INPUT CURRENT | 10A max. |
| INPUT FREQUENCY RANGE | 47Hz -63Hz |
| INPUT VOLTAGE | 100V-240V~ |
| OPERATING TEMPERATURE | 0°C to +40°C |
| OPERATING HUMIDITY | 20% to 90%,non-condensing |
| STORAGE TEMPERATURE | -20 °C to +70 °C |
| STORAGE HUMIDITY | 5% to 95%, non-condensing |
| COOLING SYSTEM | 140mm Fan: 2300 R.P.M. ± 10% |
| EFFICIENCY | Meet 80 PLUS®Bronze at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| SAFETY APPROVAL | OVP/OCP/cTUVus/TUV/CE/FCC/S-mark/EAC/BSMI/C-TICK/CCC |
| PCI-E 6+2PIN | 4 |
