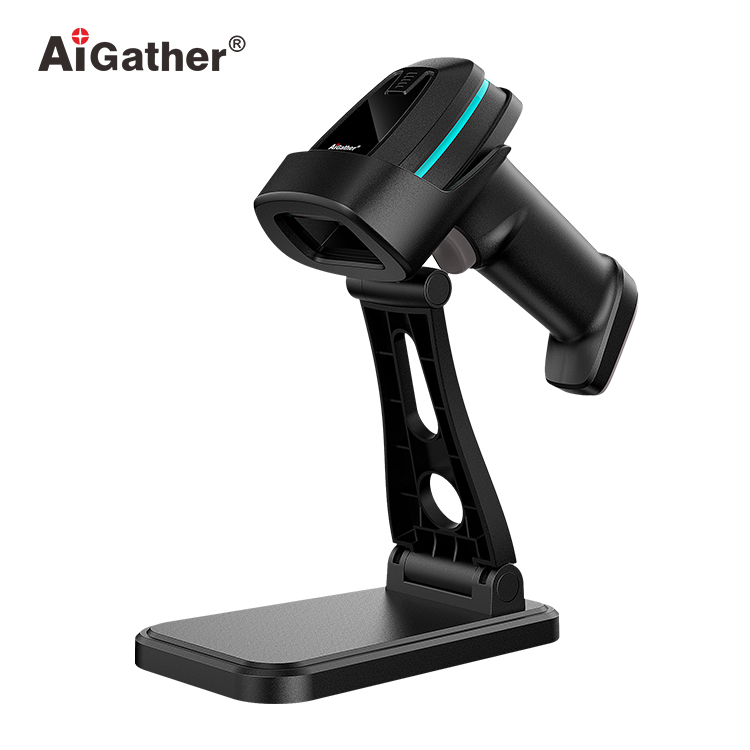

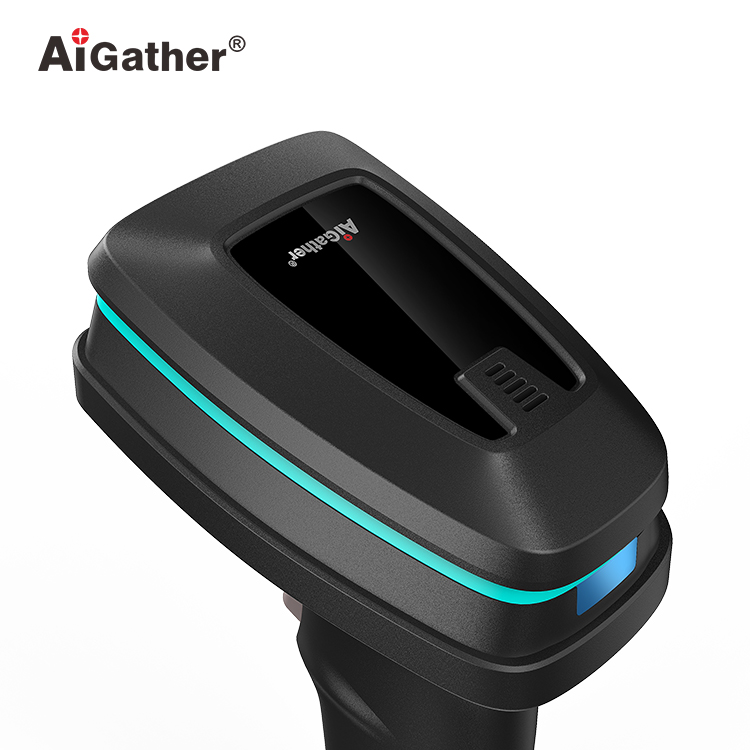

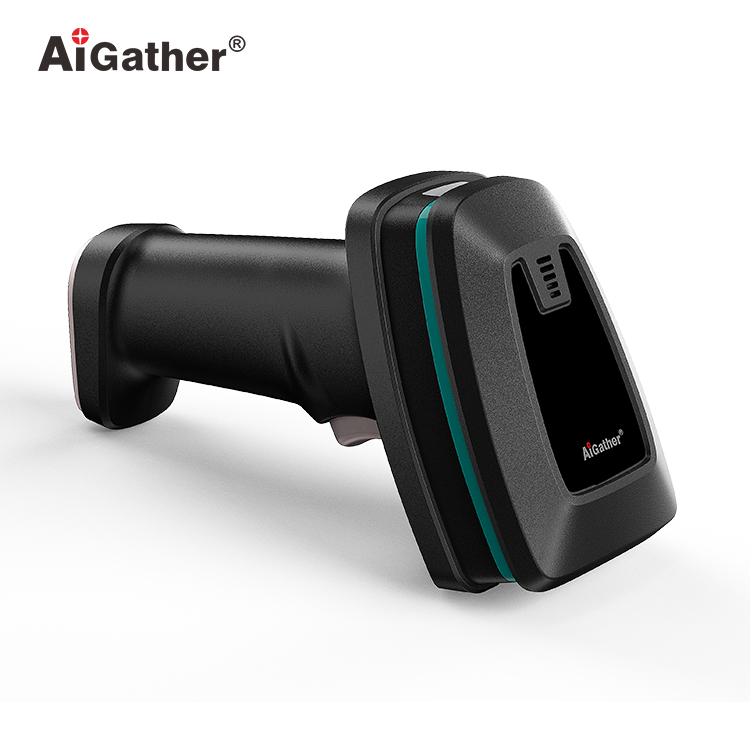

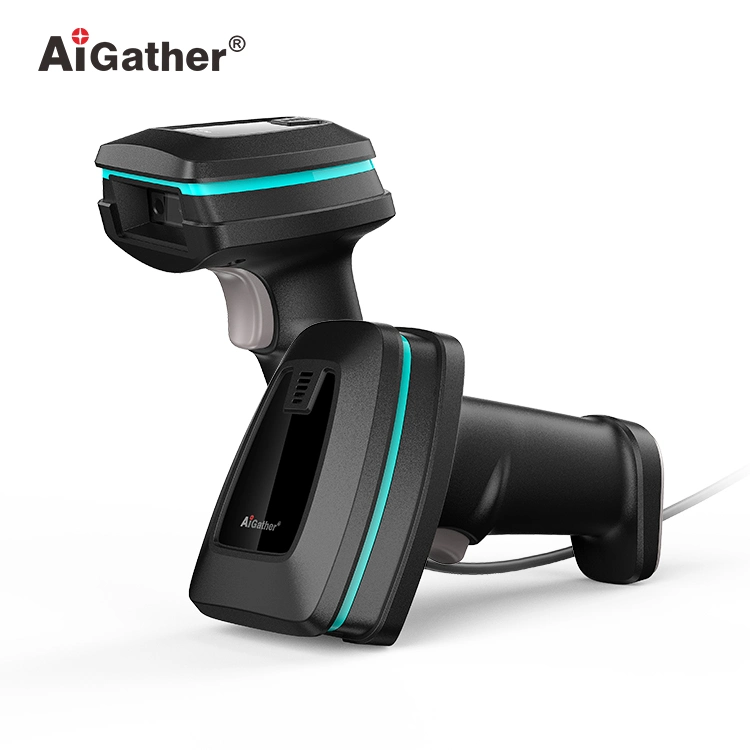

AIGATHER A-9520N 2D WIRED BARCODE SCANNER
The AIGATHER A-9520N 2D Wired Barcode Scanner is a high-performance device that quickly and accurately reads various 2D barcodes. It connects via USB for reliable, seamless integration with your system and is designed for ease of use and comfort.
- 1. The layered appearance and the mirror design on the top create a new aesthetic experience.
- 2. Equipped with the advanced decoding algorithm patented by AiGather, easy to read 1d and 2d codes.
- 3. Support many keyboard languages, no need driver, compatible with major operating systems.
රු10,500.00
0
People watching this product now!
Out of stock
Description
| Performance Parameter | |
| Light Source | LED White light |
| Aiming Light | Green Dot |
| Image Sensor | 640*480 pixels (Global Shutter) |
| CPU | 1.2G Dual core |
| Resolution(maximum) | 3mils |
| Minimum Print Contrast | 20% Reflection Difference |
| Motion Tolerance | 2M/S |
| Image Field of View | Horizontal: 50°; Vertical: 38° |
| Reading Angle | Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60° |
| Decoding Capability | 1D: All standard 1D codes including GS1 DataBarâ„¢ linear code can be automatically distinguished and decoded.
2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417. |
| Reading Indicators | LED light&Buzzer(adjustable tone and volume） |
| Typical depth of Field | Precision Barcode  Depth of Field
3.34mil CODE 128  40mm—80mm 5mil  CODE128  35mm—135mm 3.34mil EAN-13  40mm—80mm 5mil  EAN-13  30mm—105mm 13.34mil EAN-13  30mm—290mm 5mil  PDF417  35mm—105mm 15mil  QR    20mm—155mm 10mil  DM  30mm—140mm 20mil  QR  30mm—265mm (The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.) |
| Electrical Parameter | |
| Current | Working current(Standard): 80 mA ;Â Standby current(Standard): 130Â mA |
| Input Voltage | 5 VDC (+/- 10%)/500mA |
| Environmental Parameter | |
| ESD protection(Air discharge) | 8 kV |
| Drop resistance | Withstands repeated drops from 1.2m/4.0 ft onto a concrete surface. |
| Temperature | Working: -10 to 50 °C
Storage/Transport: -20 to 65 °C |
| Humidity(non-condensing) | 5 – 95% |
| Ambient light | Indoor: 0 to 6,000 lux; Outdoor: 0 to 100,000 lux |
| Product Size | 172*67*87mm |
| Interfaces | RS-232; USB HID; USB COM; HID POS available as per customer’s needs |
| Transmission | Support multi-language transmission, compatible with major operating systems, support the editing of barcode data. |
