Sold out

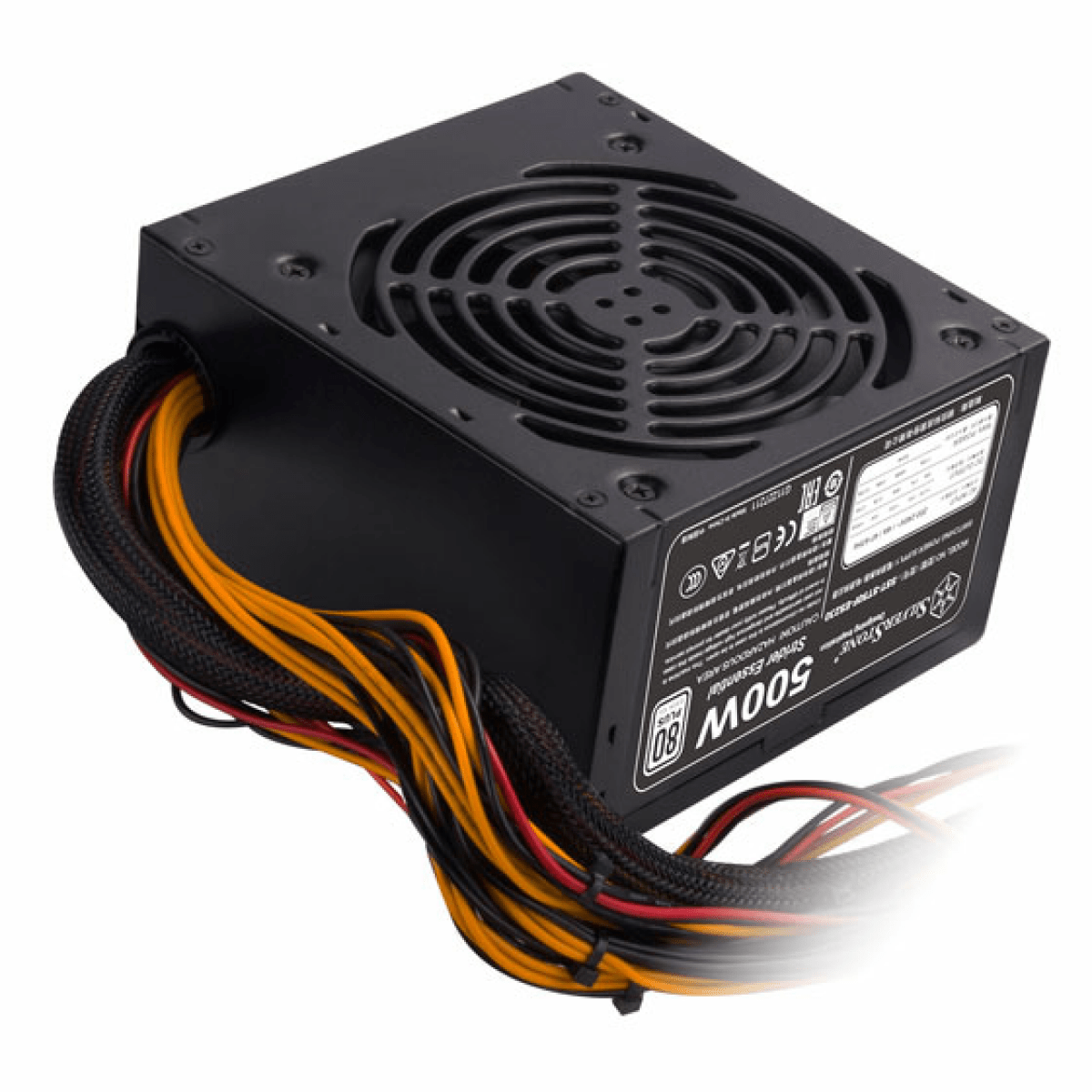

POWER SUPPLY SILVERSTONE ST50F 500W PSU

SKU: PO115

ST50F-ES230

￭ High efficiency with 80 PLUS certification

￭ 24/7 continuous power output with 40℃ operating temperature

￭ Class-leading single +12V rail

￭ Active PFC Circuitry

￭ PCI-E 8pin and PCI-E 6pin connector support

￭ Silent running 120mm fan with 18dBA

0 People watching this product now!

WARRANTY :

Add to wishlist

Add to compare

Description

Model No.

SST-ST50F-ES230

Max. DC Output

500W

Power density

277W per liter

Load Range

	+3.3V	+5V	+12V	+5VSB	-12V
Max.(Amps)	18A	17A	38A	2.5A	0.3A
Peak (Amps)	/	/	/	/	/
Min.(Amps)	0A	0A	0A	0A	0A
Range (%)	±5%	±5%	±5%	±5%	±10%
Line Reg.(%)	±1%	±1%	±1%	±1%	±1%
Ripple(mVp-p)	50mV	50mV	120mV	50mV	120mV

Combined +3.3V & +5V

110W

Combined +12V

456W

Input Voltage

180 ~ 264Vrms

Input Frequency Range

47Hz ~ 63Hz

PFC

Active PFC.（PF>0.9 at Full Load）

Efficiency

82%~85% @ 20% ~ 100% loading

MTBF

100,000 hours

Operating temperature

0°C ~ 40°C

Protection

Over power protection
Over voltage protection
Short circuit protection

Connectors

1 x 24 / 20-Pin motherboard connector（500mm）
1 x 8 / 4-Pin EPS / ATX 12V connector（750mm）
2 x 8 / 6-Pin PCIE connector（”500mm / 150mm”）
2 x SATA connector and
1 x 4-Pin Peripheral connector and
1 x 4-Pin Floppy connector （500mm / 150mm / 150mm / 150mm）
2 x SATA connector and
2 x 4-Pin Peripheral connector（500mm / 150mm / 150mm / 150mm）

Cooling System

Silent 120mm fan

Noise Level

18 dBA minimum

Dimension

150 mm (W) x 86 mm (H) x 140 mm (D)
5.91″ (W) x 3.39″ (H) x 5.51″ (D)

Weight

1.31kg

Certification

80 PLUS

Other

GPU Support list
Compatible with ATX12V v2.4
